產品特點

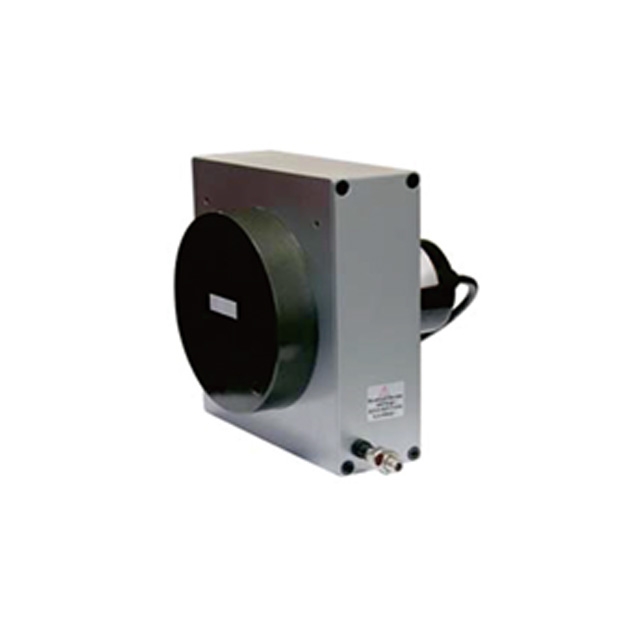

MLS-L拉線式譯碼器
- 適合量測較長行程：適用於長行程量測，行程範圍為6000 / 7000 / 8000 / 9000 / 10000 / 11000 / 12000 mm，滿足多種應用需求。
- 高解析度：提供1 mm/pulse 和0.5 mm/pulse 的高解析度，確保精確的量測結果。
產品規格
ELECTRICAL SPEC.
| Detection System | Incremental 增量型 |
| Output Wave 輸出波形 | Square Wave 方波 |
| Stroke (mm) 量測行程 | 6000, 7000, 8000, 9000, 10000, 11000, 12000 |
| Standard Resolution (mm/pulse) 解析 | 1, 0.5 mm/pulse (others by request) |
| Accuracy 精度 | ±0.05% FS, ±1 count |
| Output Phase 輸出相 | AB phase or ABZ phase |
| Electronics 電路特性 | NPN Voltage, NPN Open Collector, Push Pull or Line Driver |
| Power Supply 供應電源 | DC 8~26V, DC 5V fixed |
| Current Consumption 消耗電流 | ≦ 60 mA |
| Output Capacity 輸出容量 | Sync. Current: 20 mA, Residual Voltage: 0.5V or less |
| Max. Response 最大嚮應頻率 | 10K Hz ~ 50K Hz |
| Phase Different 相位差 | A, B phase different 90°±45° (T/4±T/8), Z phase T±T/2 |
| Wave Form Rise / Fall 波形上下時間 | 2 μs or less |
| Polarity 極性保護 | Against Reverse Protection (not with DC 5V) |
MECHANICAL SPEC.
| Wire Specification 線徑規格 | Material: SUS304 with nylon coating |
| Diameter: 1.0 mm; Breaking load: 60 Kg | |
| Max. Travel Speed 最大往復速度 | 1,000 mm / sec. |
| Vibration 震動 | 10g (10±1,500 Hz) |
| Shock 衝擊 | 20g per 11 ms |
| Cable 電線 | Ø5.4, 100 cm long |
| Weight 重量 | < 3,500g |
| Starting Torque on Spring 拉力 | 1,500 ~ 2,000 g |
ENVIRONMENTAL SPEC.
| Operating Temp. / Humidity 操作溫度/濕度 | -10°C ~ 60°C, RH 35% ~ 90% (No Condensation) |
| Storage Temp. 儲存溫度 | -20°C ~ 80°C |
| Protection 保護等級 | IP64: Dust & Dripping Proof (only for encoder housing) |
| Life 壽命 | Typical > 1 X 106 cycles |

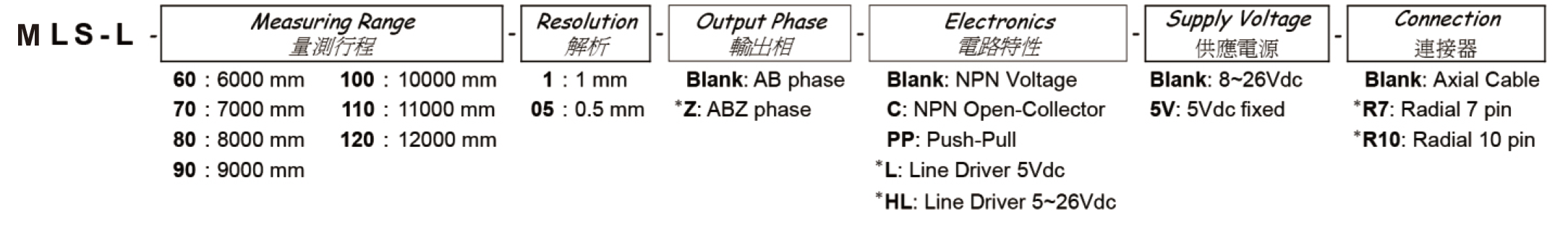

ORDERING INFORMATION

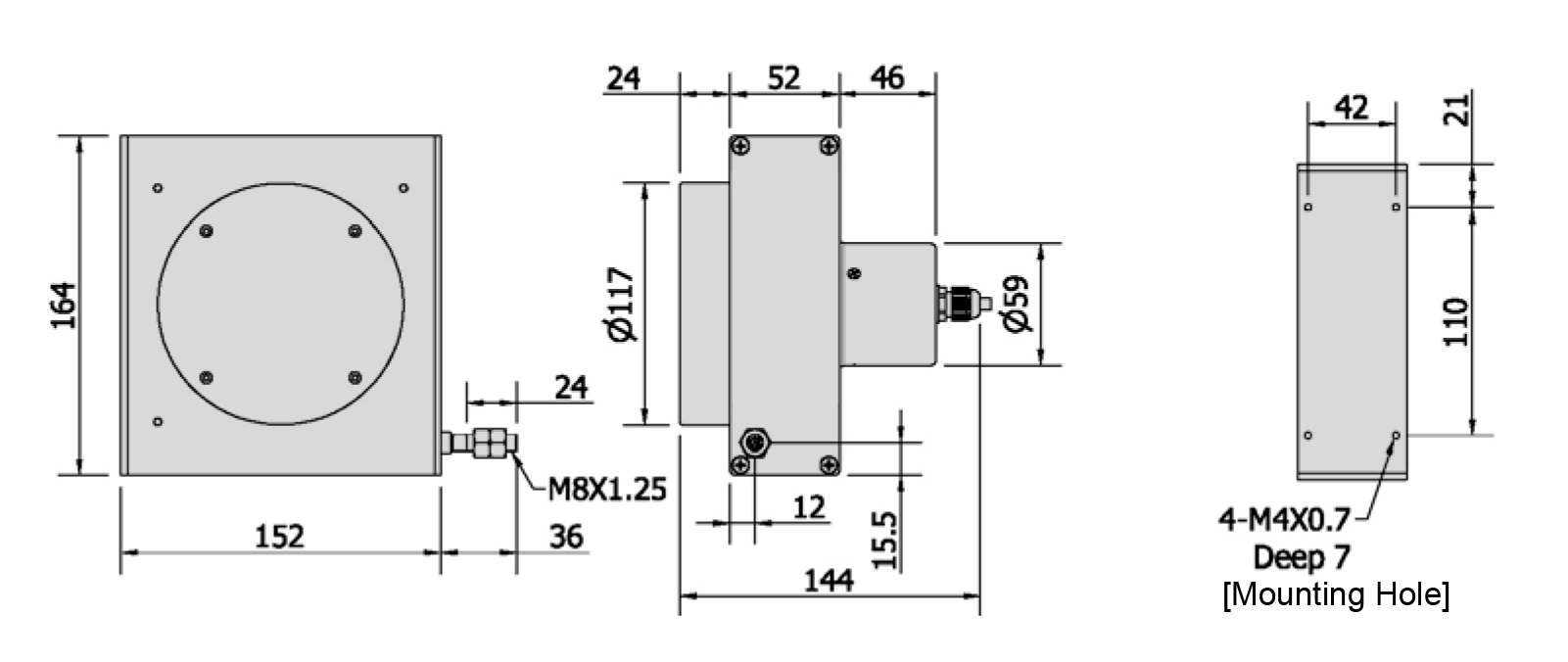

產品尺寸
