產品特點

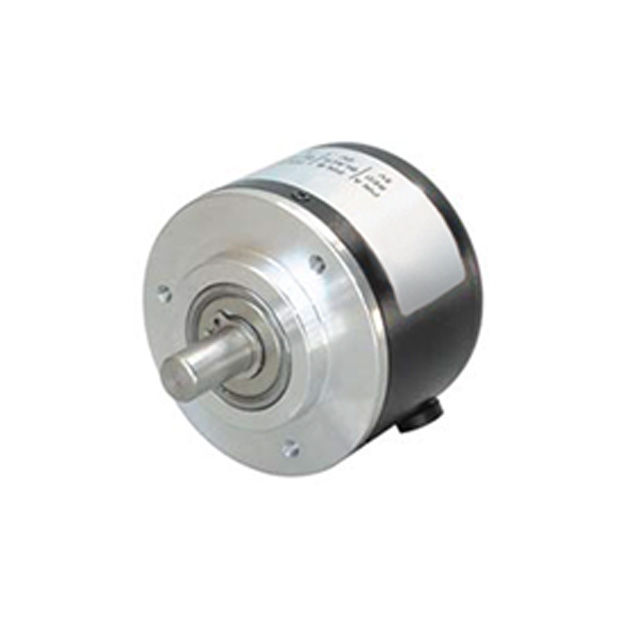

MTR-5B旋轉式譯碼器-軸心型 (輕載型)
- 外徑：50 mm
- 軸心外徑：8 mm
- 解析度：5 ~ 2500 PPR（每轉脈衝數）
產品規格
ELECTRICAL SPEC.
| Detection System | Incremental 增量型 |
| Output Wave 輸出波形 | Square Wave 方波 |
| Standard Number of Pulse Per Revolution 解析 |
2, 5, 12, 10, 20, 30, 40, 50, 60, 80, 100, 120, 150, 160, 180, 200, 250, 300, 360,400, 500, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1500, 1800, 2000, 2048,2500 |
| Output Phase 輸出相 | AB phase or ABZ phase |
| Electronics 電路特性 | NPN Voltage, NPN Open Collector, Push Pull or Line Driver |
| Power Supply 供應電源 | DC 8~26V, DC 5V fixed |
| Current Consumption 消耗電流 | < 60 mA |
| Output Capacity 輸出容量 | Sync. Current: 20 mA, Residual Voltage: 0.5V or less |
| Max. Response 最大嚮應頻率 | 10K Hz ~ 100K Hz |
| Phase Different 相位差 | A, B phase different 90°±45° (T/4±T/8), Z phase T±T/2 |
| Wave Form Rise / Fall 波形上下時間 | 2 μs or less |
| Polarity 極性保護 | Against Reverse Protection (not with DC 5V) |
MECHANICAL SPEC.
| Shaft Diameter 軸徑 | 8 mm |
| Shaft Loading 軸荷重 | (10 ~ 400 PPR) Axial 軸向: 3 Kg, Radial 徑向: 5 Kg (over 400 PPR) Axial 軸向: 1 Kg, Radial 徑向: 2 Kg |
| Starting Torque (at 25°C) 起動轉矩 | 40 gf-cm or less |
| Max. Speed 最大機械容許速度 | 6,000 rpm |
| Vibration 震動 | 10g (10±1,500 Hz) |
| Shock 衝擊 | 20g per 11 ms |
| Cable 電線 | Ø4.5, 50 cm long |
| Weight 重量 | ≤ 200g |
ENVIRONMENTAL SPEC.
| Operating Temp. / Humidity 操作溫度/濕度 |
0°C ~ 60°C, RH 35% ~ 90% (No Condensation) |
| Storage Temp. 儲存溫度 | -20°C ~ 80°C |
| Protection 保護等級 | IP50: Dust Proof |

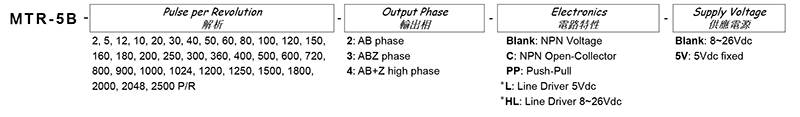

ORDERING INFORMATION

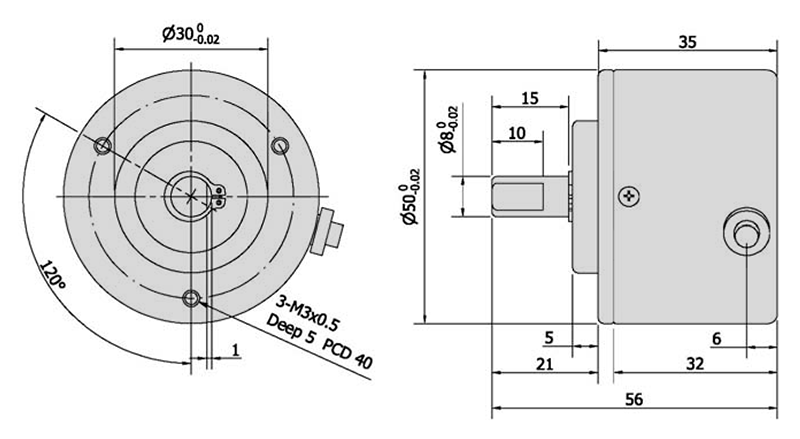

產品尺寸
