產品特點

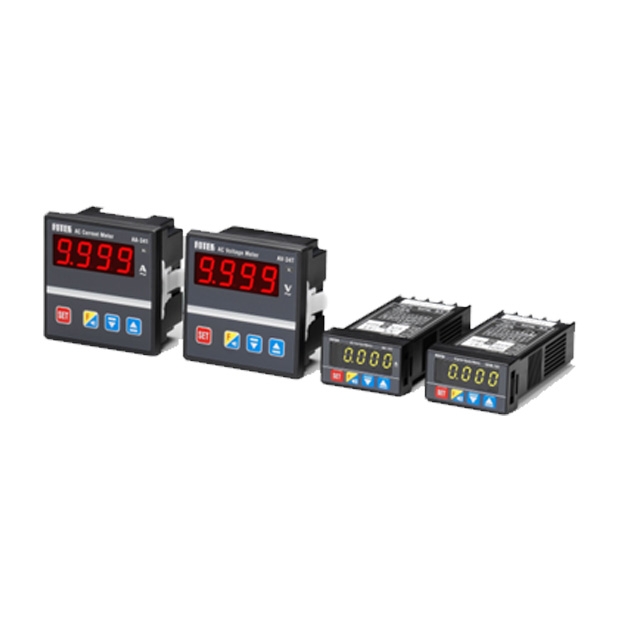

數位顯示表(顯示型)
-
廣泛量測範圍: 可測量電壓範圍為0~600V，電流範圍為0~20A。
-
易於安裝使用: 設計簡單，方便安裝。
-
倍率可設定: 使用者可以根據需求設定倍率。
-
零點可設定: 零點也可進行設定，以提高測量精確度。
產品規格
型號規格-顯示型
| Meter | Outline | Model | Input Range | Display Range |
| Digital scale meter |
DIN 48x24 |
ARM-14T | 0 ~ 10VAC or 0 ~ 100VAC |
-1999 ~ 9999 |
| DRM-14T | 0 ~ 10VDC or 0 ~ 100VDC |
-1999 ~ 9999 | ||
| DRM-14T-mV | 0 ~ 100mVDC | -1999 ~ 9999 | ||
| DRM-14T-mA | 0 ~ 20mA VDC or 4 ~20mA VDC |
-1999 ~ 9999 | ||
| DRM-14T-VR | Variable resistor | -1999 ~ 9999 | ||
| DIN 72x72 |
ARM-34T | 0 ~ 10VAC or 0 ~100VAC |
-1999 ~ 9999 | |
| DRM-34T | 0 ~ 10VDC or 0 ~100VDC |
-1999 ~ 9999 | ||
| DRM-34T-mV | 0 ~100mVDC | -1999 ~ 9999 | ||
| DRM-34T | 0 ~ 20mA VDC or 4 ~20mA VDC |
-1999 ~ 9999 | ||
| DRM-34T-VR | Variable resistor | -1999 ~ 9999 | ||
| Voltage meter |
DIN 48x24 |
AV-14T | 600vac | -1999 ~ 9999 |
| DV-14T | 600vdc | -1999 ~ 9999 | ||
| DV-14T-mV | 1.000vdc | -1999 ~ 9999 | ||
| DIN 72x72 |
AV-34T | 1000vac | -1999 ~ 9999 | |
| DV-34T | 1000vdc | -1999 ~ 9999 | ||
| DV-34T-mV | 1.000vdc | -1999 ~ 9999 | ||
| Current meter |
DIN 48x24 |
AA-14T | 0 ~ 5A VAC | -1999 ~ 9999 |
| DA-14T | 0 ~ 5A VDC | -1999 ~ 9999 | ||
| DA-14T-mA | 0 ~ 200mA VDC | -1999 ~ 9999 | ||
| DIN 72x72 |
AA-34T | 0 ~ 20A VAC | -1999 ~ 9999 | |
| DA-34T | 0 ~ 20A VDC | -1999 ~ 9999 | ||
| DA-34T-mA | 0 ~ 200mA VDC | -1999 ~ 9999 |
共同規格
| Specification | Data |
| Power supply | 90 ~ 250 Vac 50/60Hz or 24 Vdc/ac or 48 Vdc/ac |
| Control output | Non |
| Accuracy | ±0.1% of F S. |
| Response time | 200ms |
| Memory method | EEPROM |
| Insulation resistance | Over 500ΜΩ/500Vdc |
| Dielectric strength | Over 2.5KV/1min. |

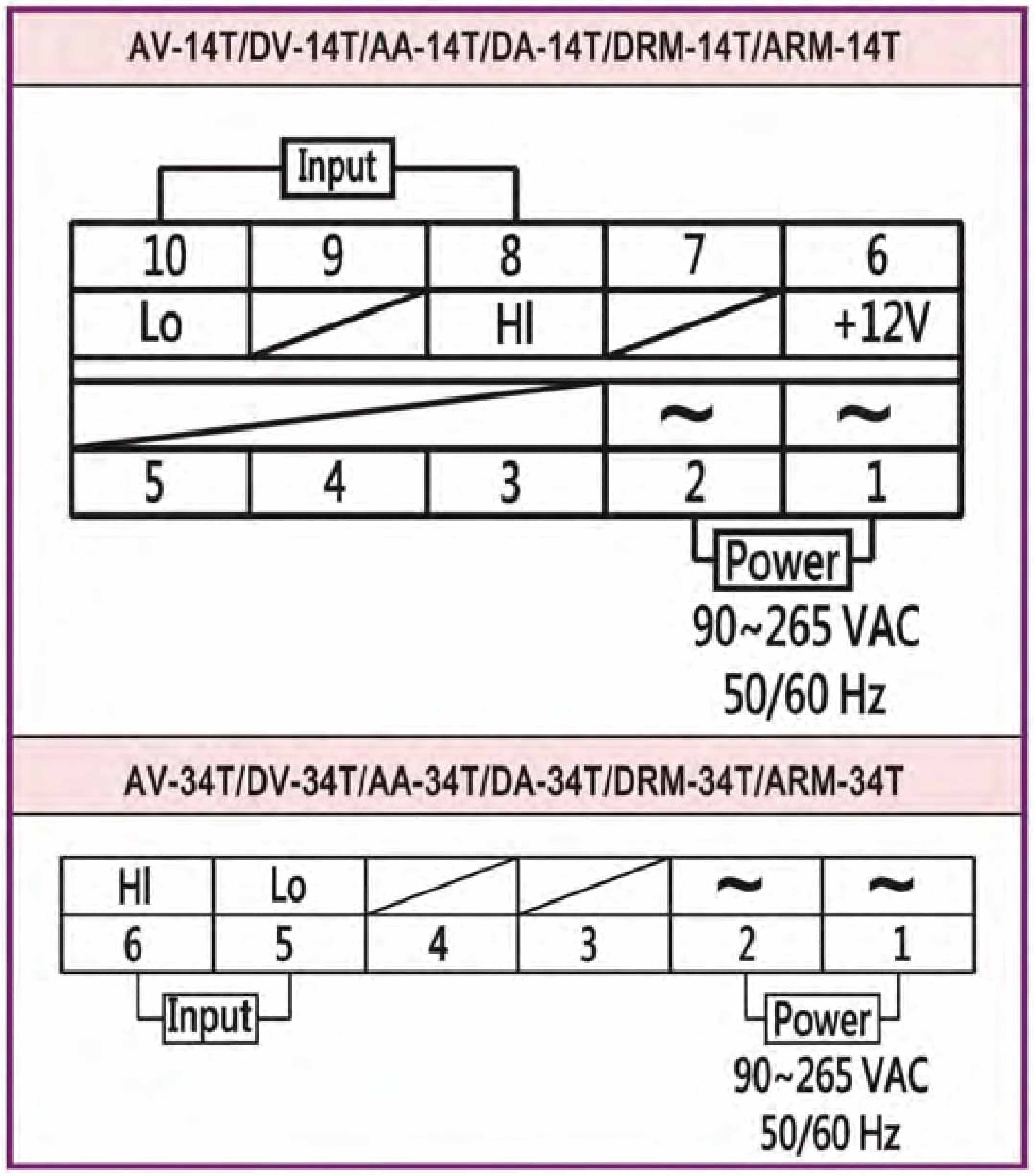

接線圖
型號索引
DRM - 14 1 - 50mV - 100.0 - 24V
1 2 3 4 5
1.Product (表類) 2.輪廓 (外形)
3.Input (輸入方式) 4.Display (顯示範圍)
5. Power supply(工作電壓)

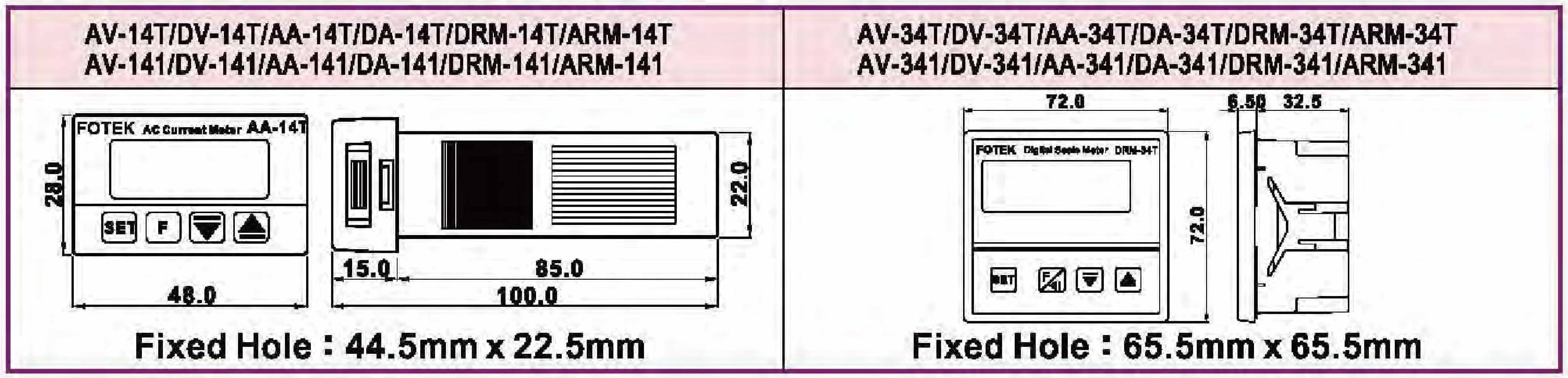

外型尺寸
