產品特點

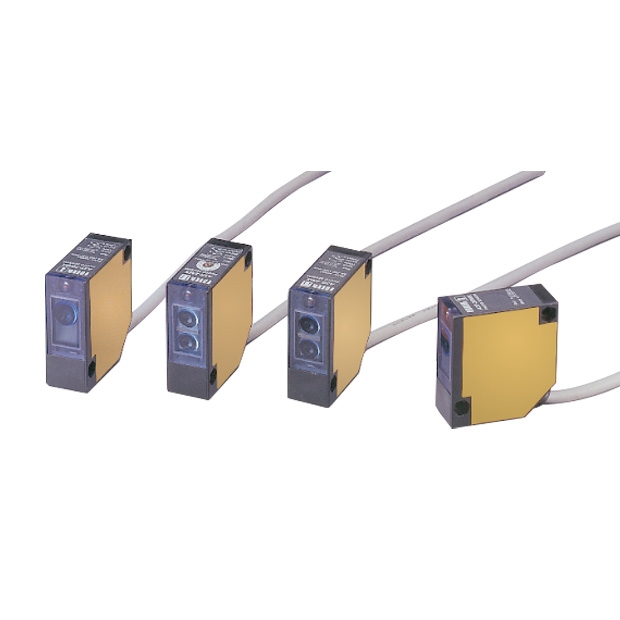

自由電源型光電開關
-
廣泛的運行電壓：
- 適用於DC 12~240V或AC 24~240V，應用範圍廣。 -
高容量繼電器輸出：
- 具備3A/250VAC繼電器輸出，滿足高功率需求。 -
結構與防護：
- 高緊湊結構設計，達到IP-65防護等級，適應各種工業環境。 -
浪湧保護：
- 配備多重浪湧保護電路，有效防止因浪湧造成的損壞。 -
輸出與型號：
- 提供B型（常閉型）輸出模式。
- 可選型號包括A3R、A3G、A3T系列，涵蓋不同需求。
- 提供A3G-4MRE反射型作為可選配置。 -
生產與供應：
- 現貨可能缺乏，接受訂單製造。
產品規格
一般規格
| Specification | Data | ||
|---|---|---|---|
| Operating Voltage | 12~240 VDC; 24~240 VAC, 50/60HZ | ||
| Current Consumption | 2VA max. | ||
| Output Method | Relay | ||
| Contact Current | 5A/250 VAC | ||
| Response Time | 15ms | ||
| Illumination | Lamplight < 10,000 Lux.; Sunlight < 30,000 Lux. | ||
| Connection Method | 5 Cores/6.0φ X 2m | ||
| Noise Resistance | 1500Vp - p/1 μS | ||
| Surge Resistance | 2 KV/1μ S | ||
| Vibration Resistance | 10~55Hz/1.5mm, 2 Hour In X.Y.Z. Direction | ||
| Housing Material | Case: Intensive ABS; Lens : PC | ||
| Operating Temp./Hum. | -20 C ~ +60 C; 35% ~ 85% RH | ||

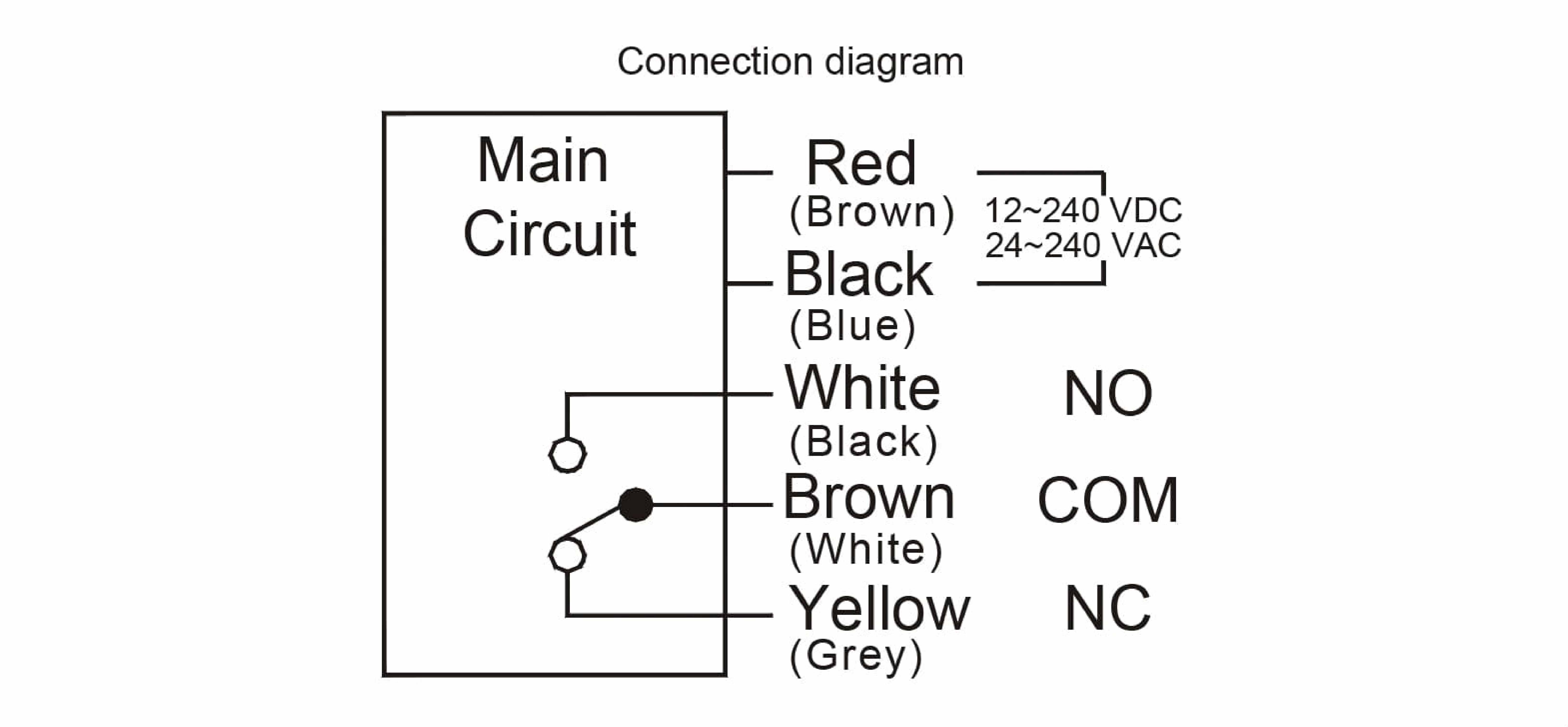

| Connection Diagram |  |
||
反射型
| Type | Standard Type | Water-Proof Type | ||||
|---|---|---|---|---|---|---|
| Model | A3R-30X | A3R-1MX | A3R-2MX | A3R-30XP | A3R-1MXP | A3R-2MXP |
| Sensing Distance | 30cm | 100cm | 200cm | 30cm | 100cm | 200cm |
| Protection Class | IP-65 | IP-67 | ||||
| Operating Voltage | 12~240 VDC; 24~240 VAC 50/60Hz | |||||
| Output Method | Relay | |||||
| Output Status | NO. <Received ON > | |||||
| Sensitivity Adjuster | 270° Trimmer | |||||
| Emitter | Infrared LED | |||||
| Min. Sensible Object | 5.0φ | |||||
| Weight | Appr.145g | Appr.155g | ||||
鏡面反射型
| Type | Standard Type | Water-Proof Type | ||||
|---|---|---|---|---|---|---|
| Model | A3G-2MR | A3G-2MRS | A3G-4MRE | A3G-4MX | A3G-2MRP | A3G-4MXP |
| Sensing Distance | 3m | 2m | 4m | 4m | 3m | 4.5m |
| Emitter | Red LED | Red LED | Red LED | Infrared LED | Red LED | Infrared LED |
| Sensitivity Adjuster | Trimmer | Without | Trimmer | Without | ||
| Protection Class | IP-65 | IP-67 | ||||
| Operating Voltage | 12~240 VDC; 24~240 VAC 50/60Hz | |||||
| Output Method | Relay | |||||
| Output Status | NO. < Break ON > | |||||
| Min. Sensible Object | 2.0φ | 5.0φ | 2.0φ | 5.0φ | ||
| Weight | Appr.145g | Appr.155g | ||||
透過型
| Type | Standard Type | Water-Proof Type | ||||
|---|---|---|---|---|---|---|
| Model | A3T-3MX | A3T-10MX | A3T-20MX | A3T-3MXP | A3T-10MXP | A3T-20MXP |
| Sensing Distance | 3m | 10m | 20m | 3m | 10m | 20m |
| Protection Class | IP-65 | IP-67 | ||||
| Operating Voltage | 12~240 VDC; 24~240 VAC 50/60Hz | |||||
| Output Method | Relay | |||||
| Output Status | NO. < Break ON > | |||||
| Emitter | Infrared LED | |||||
| Sensitivity Adjuster | Without | |||||
| Min. Sensible Object | 2.0φ | 5.0φ | 10.0φ | 2.0φ | 5.0φ | 10.0φ |
| Weight | Appr.285g | Appr.305g | ||||

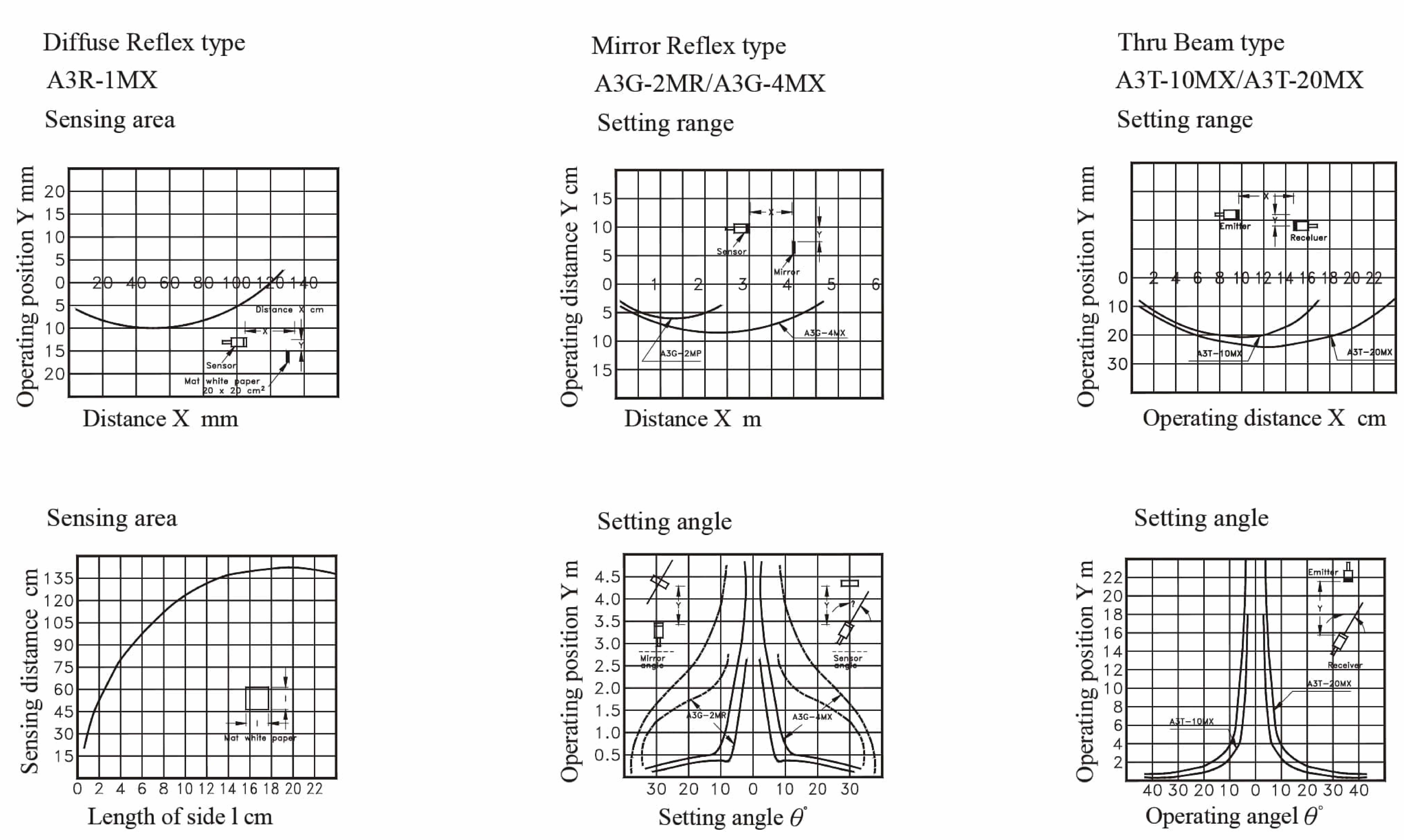

產品曲線圖

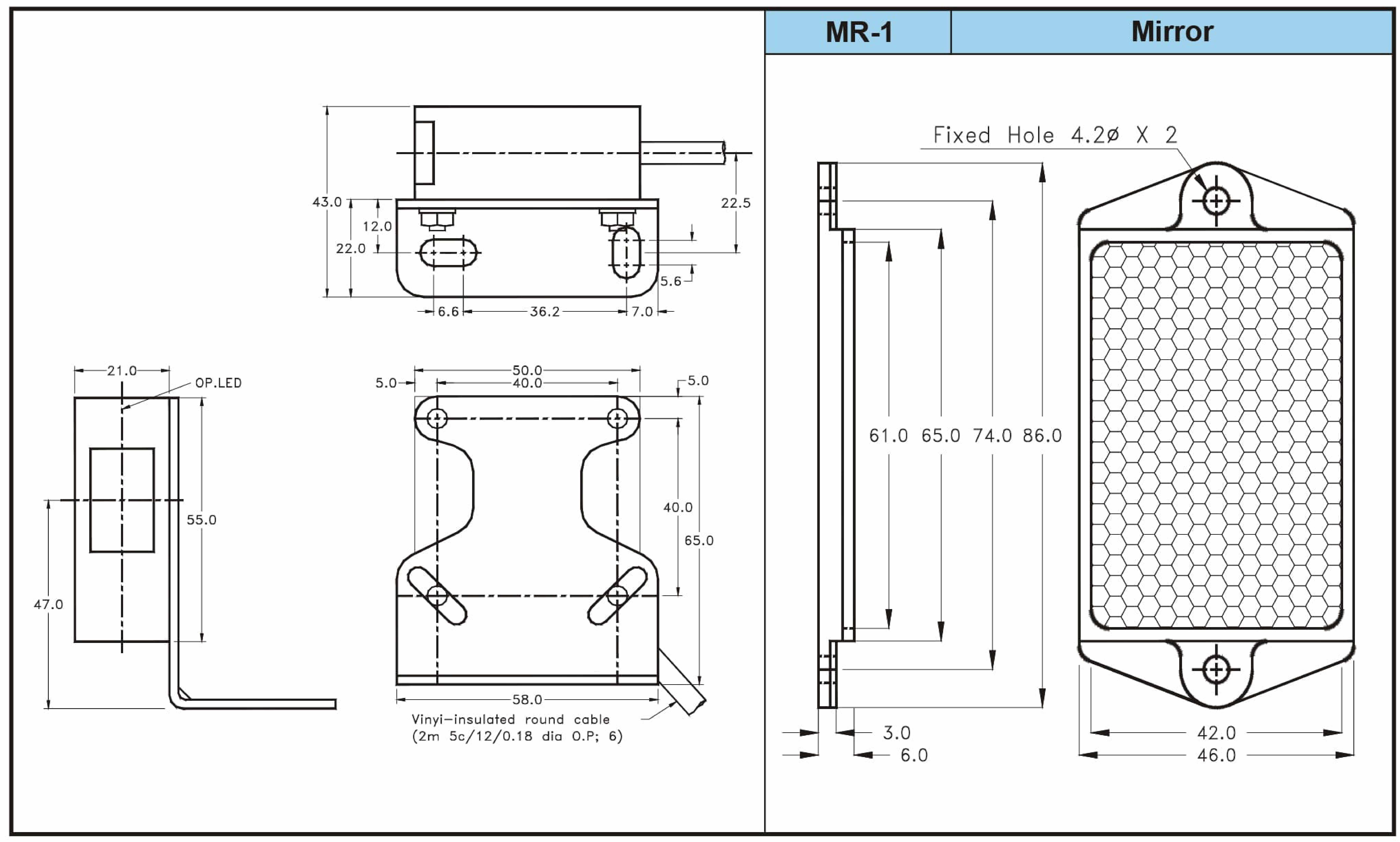

產品尺寸
