產品特點

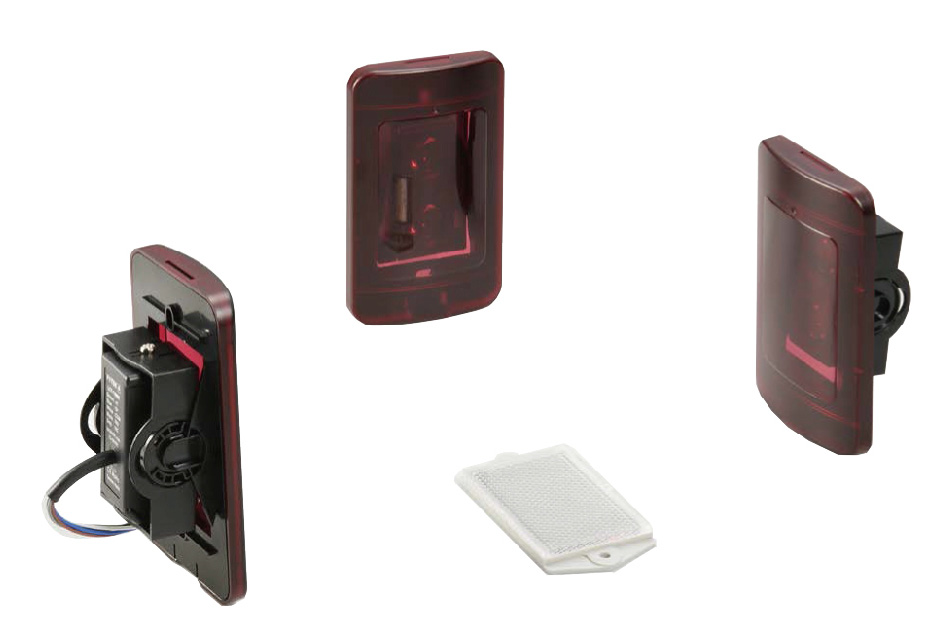

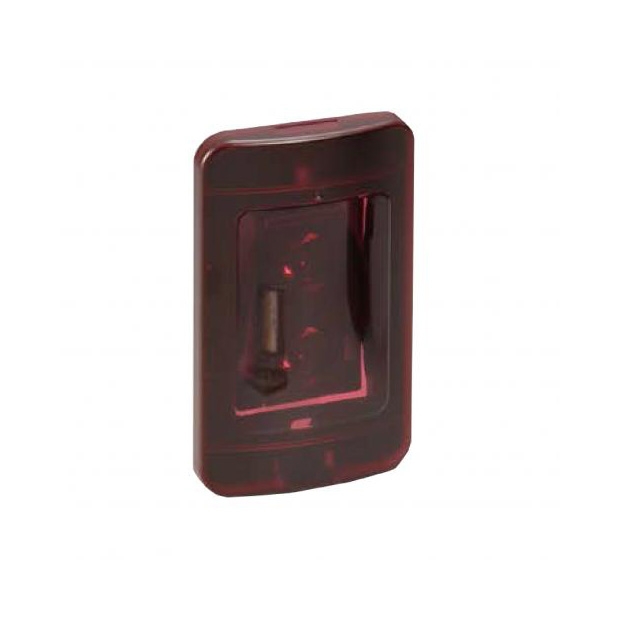

車道光電傳感器
-
安裝角度可調整：此設計提供靈活性，方便安裝在不同的位置和角度。
-
雙光軸透過型：透過雙光軸結構，提升檢測準確性和穩定性。
-
鏡片反射型附偏光片：內建偏光片，減少光線反射干擾，適合高精度應用場景。
-
高抗外亂光：具備強光抗干擾性能，能夠在高亮度或外部光源干擾下正常運行。
-
更長的檢測安裝距離：支持更長的檢測範圍，增加應用靈活性。
-
高防水等級 IP67：確保產品能在惡劣環境（如高濕度或灰塵多的環境）中可靠運行。
產品規格
| Type 形式 |
Thru beam type | Mirror reflex type | Polarized mirror reflex type |
|||||
| Model 型號 |
LCT- 16MX |
LCT- 16MXB |
LCT- 40MX |
LCT- 40MXB |
LCG- 12MR |
LCG- 12MRB |
LCG- 10MRE |
LCG- 10MREB |
| Sensing distance 檢測距離 |
16M min. | 16M min. | 40M min. | 40M min. | 12 M min | 12 M min | 10 M min | 10 M min |
| Output status 輸出狀態 |
Dark ON | Light ON | Dark ON | Light ON | Dark ON | Light ON | Dark ON | Light ON |
| Polarized filter 附偏光片 |
non | non | With polarized filter | |||||
| Emitter 發射光 |
Infra-Red LED | Red LED | ||||||
| Light beams 光軸數 |
Twin light beams | Single light baem | ||||||
| Current consumption 耗電流 |
Tx: 10mA max. Rx: 30mA max. | 40mA max. | ||||||
| Response time 反應時間 |
30 ms max. | 15 ms max. | ||||||
| Min. sensible object 最小檢測物 |
200Φ Opaque object min. | 50Φ Opaque object min. | ||||||
| Power supply 工作電壓 |
10~30VDC | |||||||
| Output method 輸出方式 |
Relay 2A/30VDC max. | |||||||
| Fixed adjustable angle 安裝角度 |
Rotated angle≦±15°；Pitched angle≦±15° | |||||||
| Relay life of mechanical 機械壽命 |
1 x 10⁸ operations min. | |||||||
| Operating circumstance 電氣壽命 |
5 x 10⁵ operations. min. (1 A 30 VDC) | |||||||
| Illumination resistance 耐外亂光 |
Sunlight > 30,000 Lux.; Lamplight > 10,000 Lux. | |||||||
| Protection circuit 保護迴路 |
Power polarity reversed | |||||||
| Vibration resistance 耐震動 |
10~55Hz/1.5mm, 2 hours in X/Y/Z dirctions | |||||||
| Approval 安規 |
CE/RoHS | |||||||
| Housing material 外殼材質 |
Housing: Intensive ABS (94V0); Cover & Lenz: PMMA | |||||||
| Protection 防水等級 |
IP-67 | |||||||
| Connection method 出現方式 |
5Φ x 20 cm | |||||||
| Operating circumstance 工作環境 |
-25°C~+80°C; 35%~85% RH | |||||||

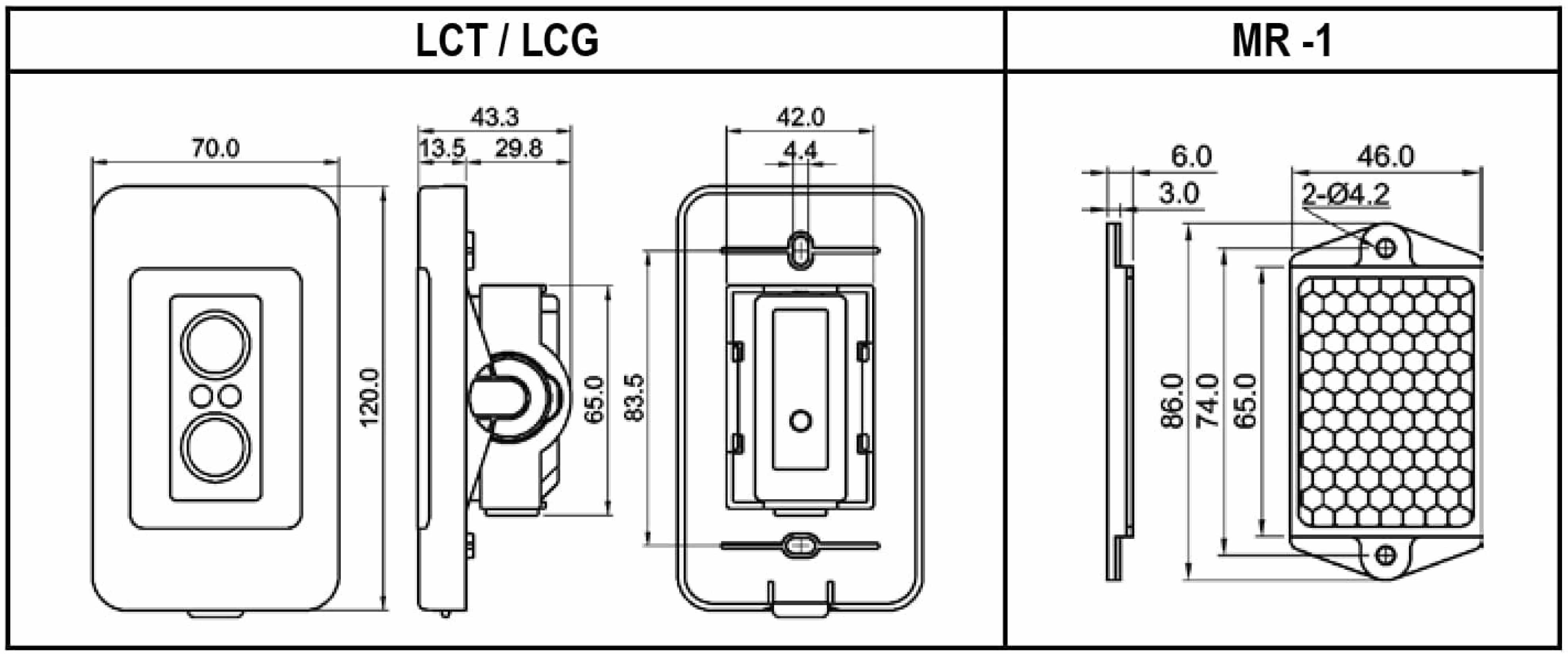

產品尺寸

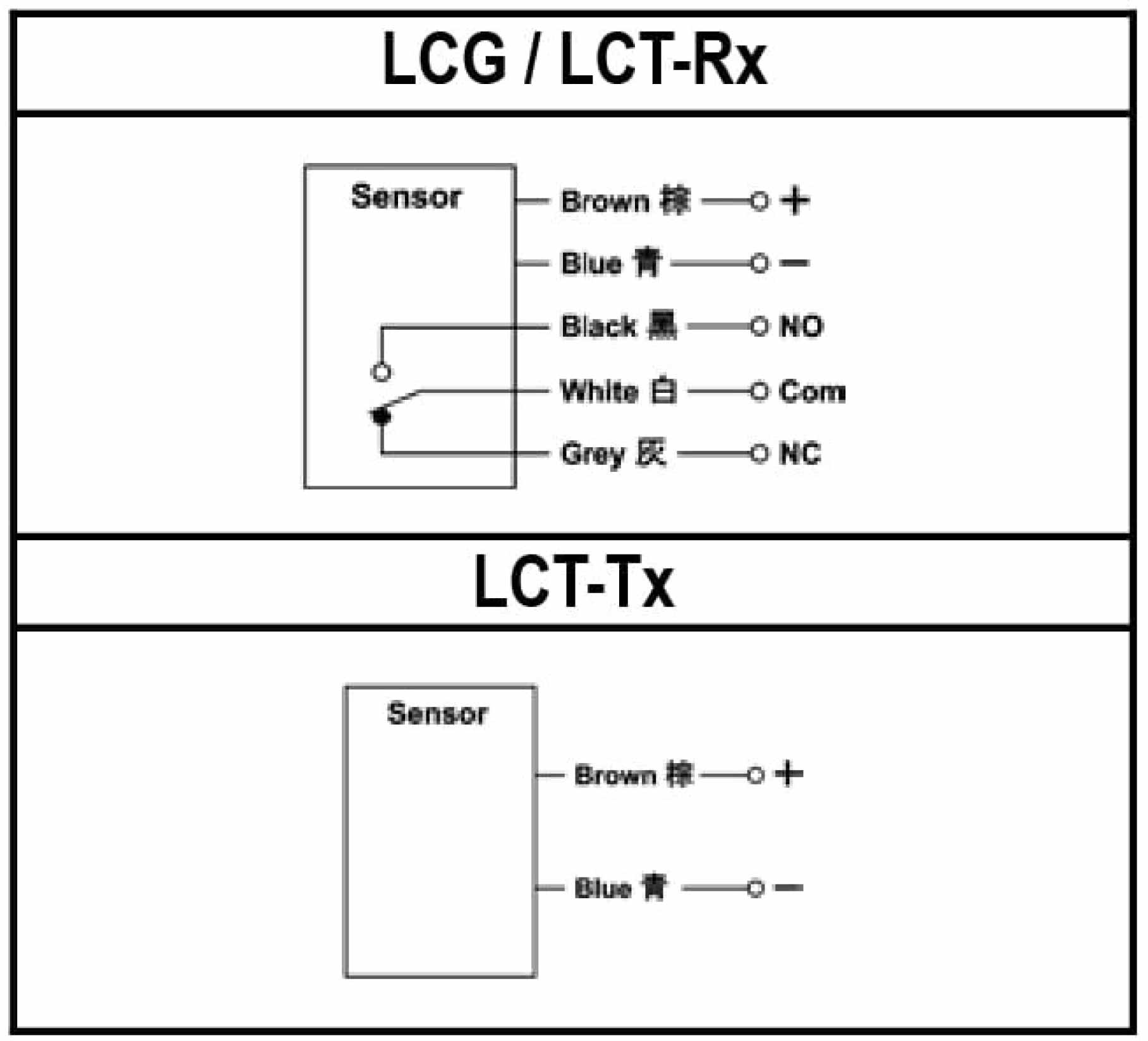

產品接線圖

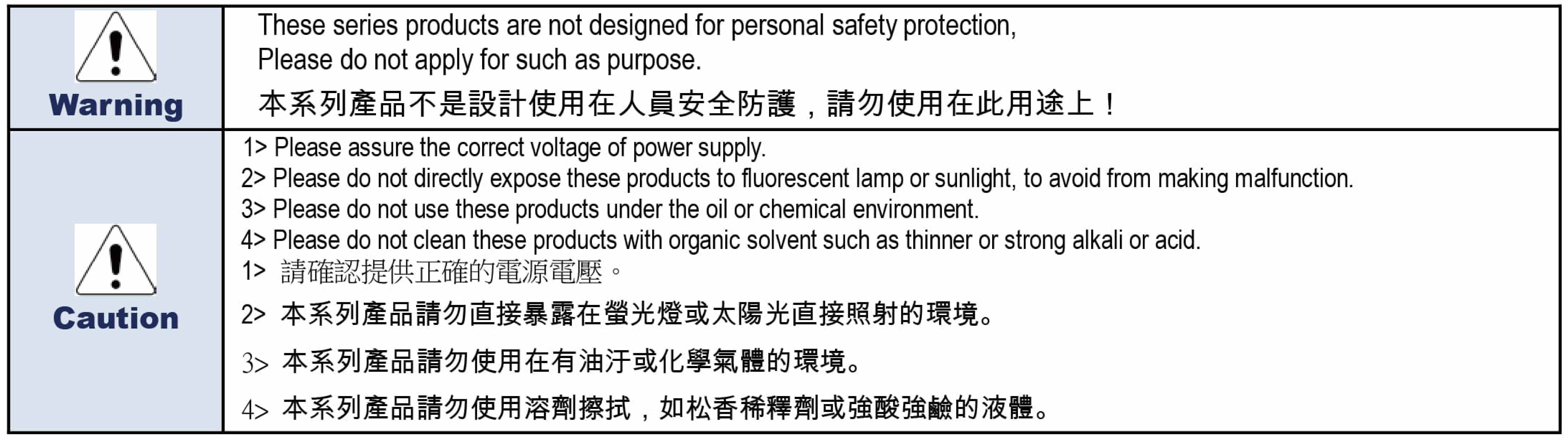

注意事項
