產品特點
-
靈活安裝方式：支持多點固定方法，適合多種應用場景。
-
可變輸出狀態：輸出狀態可根據需求調整為Light ON或Dark ON，提升使用靈活性。
-
堅固結構與防護等級：設計緊湊且結構堅固，符合IP-66防護標準，可應對惡劣環境。
-

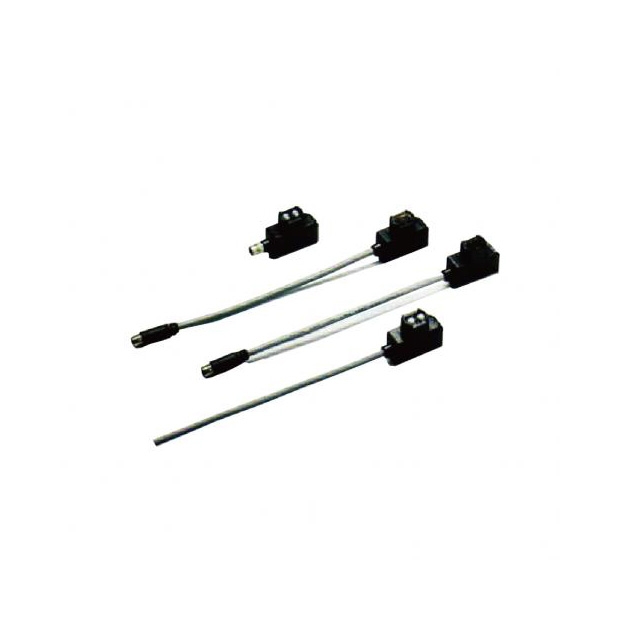

多種連接方式：提供導線、M8接頭以及導線搭配M8接頭的連接選項，滿足不同安裝需求。

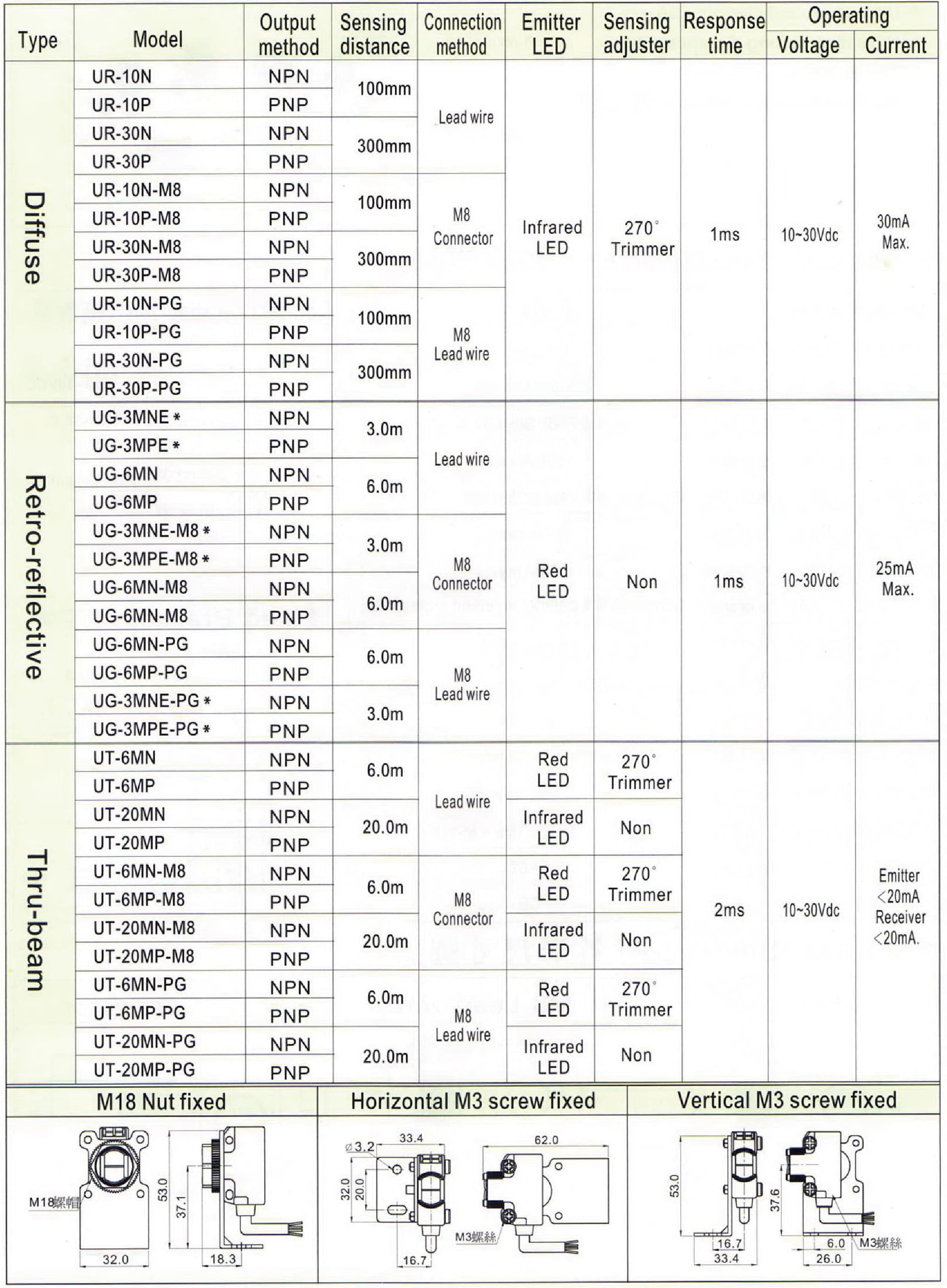

產品規格
| Specification | Data |
|---|---|
| Operating voltage | 10~30VDC |
| Ripple of power | 20% peak to peak |
| Output method | NPN or PNP |
| Output status | Light ON / Dark ON changeable |
| Output current | 150mA max. |
| Residual voltage | 0.1V max. |
| Leakage current | 0.8mA max. |
| Protection circuit | Short circuit & polarity reversed protection |
| Housing material | Housing: Intensive PBT; Lenz: PMMA |
| Illumination | Lamp light <10,000Lux; Sunlight< 20,000Lux |
| Noise resistance | 2kv/1μs |
| Dielectric strength | 2.5kv / 1 minute min. |
| Insulation strength | 100 ΜΩ/500vdc |
| Operating circumstance | -20°C ~ +80°C; 35%~85% RH |
| Protection class | IP-66 |
| Approval | CE/UL/RoHS |

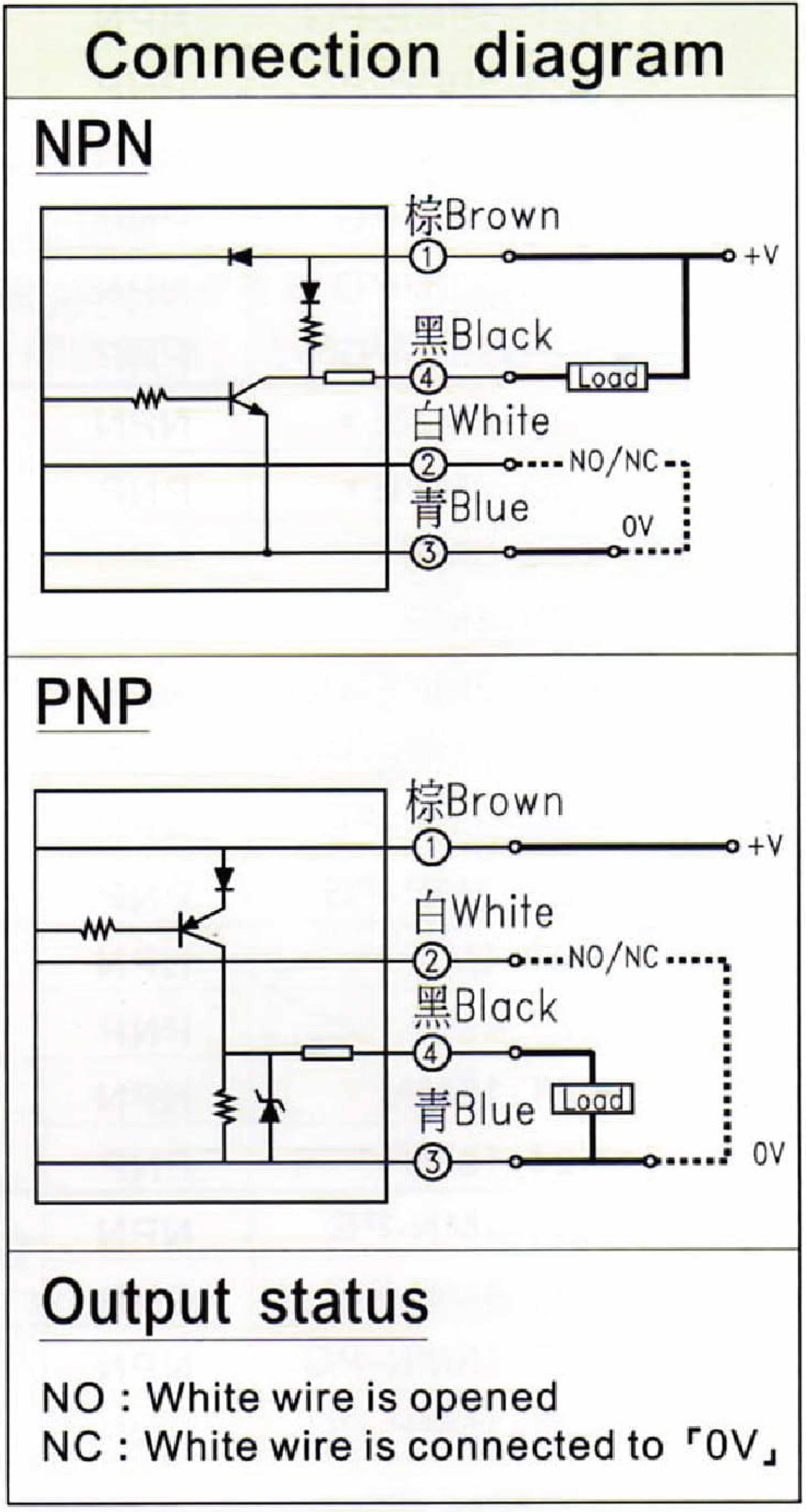

產品接線圖

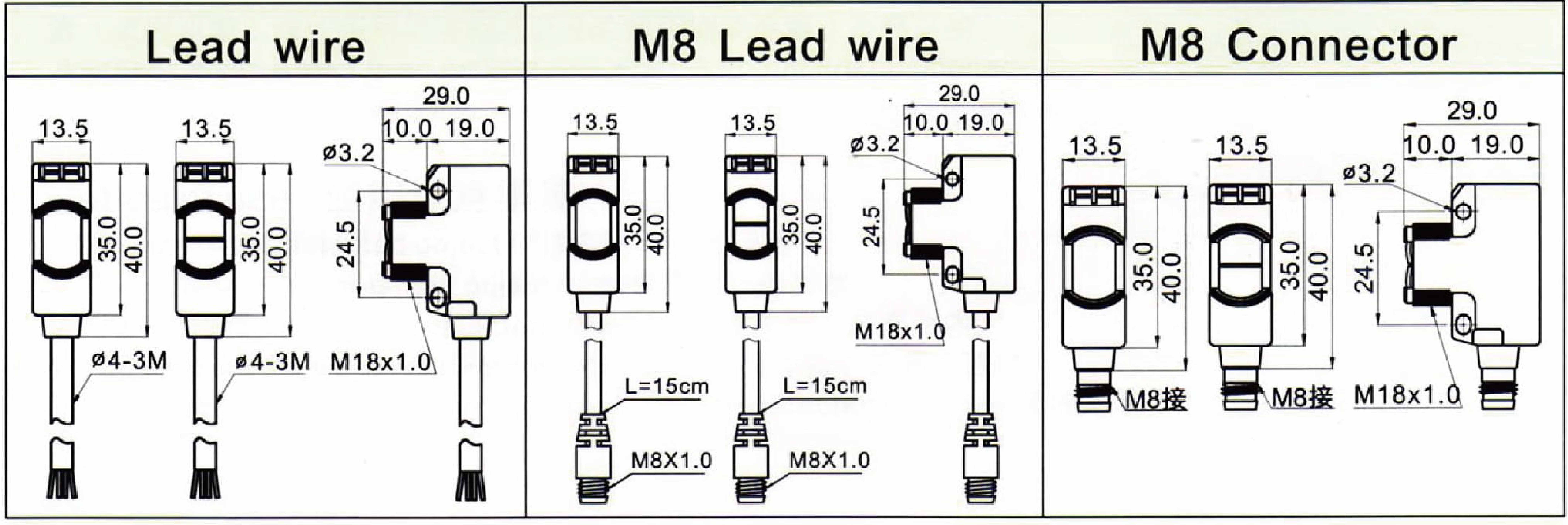

產品尺寸
*With Polarized filter
使用注意事項

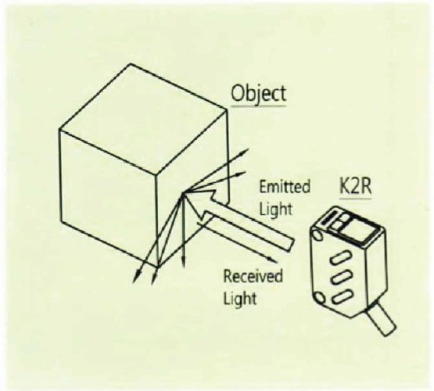

Reflex type 直接反射型
感測器的發射晶體與接收晶體在同一側，依「被檢測物」反射光強弱或有無來檢測有無「被檢測物」。
A sensor contains both the emitter and the receiver in one housing, It detects the object by the reflected light from the object
Notice of use 使用注意事項:
1. The size of the detected object/「被檢測物」的大小
2. The outline of the detected object/「被檢測物」的形狀
3. The transparency of the detected object/「被檢測物」的透明度
4. The surface color of the detected object /「被檢測物」的表面顏色
5. The passing speed of the detected object/「被檢測物」的通過速度
6. The surface roughness of the detected object/「被檢測物」的表面粗糙度
7. The space between the detected object and the background/安裝空間有無背景物

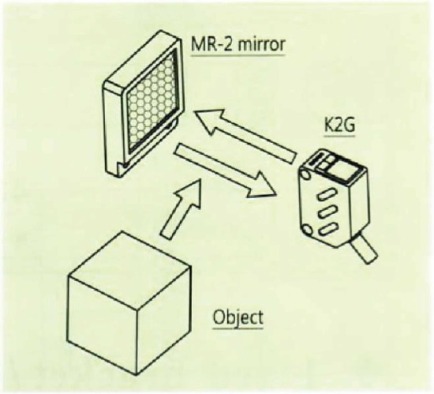

Mirror Reflex type 鏡片反射型
感測器的發射晶體與接收晶體在同一側,須在感測器對面安裝反射鏡片; 當「被檢測物」通過感測器時會遮斷光束即可檢測有無「被檢測物」。
A sensor contains both an emitter and a receiver in one housing and set a mirror on opposed side, It detects the object by the detected object interrupting the beam.
Notice of use 使用注意事項:
1 The size of the detected object/「被檢測物」的大小
2. The outline of the detected object/「被檢測物」的形狀
3. The transparency of the detected object/「被檢測物」的透明度
4. The shiny surface of the detected object /「被檢測物」的表面亮度
5. The passing speed of the detected object /「被檢測物」的通過速度
6. The space between the detected object and the detected object/「被檢測物」連續移動的間隔

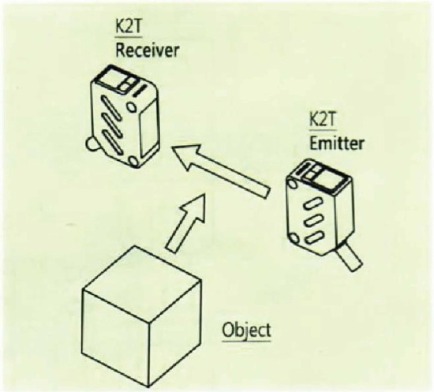

Thru Beam type 透過型
感測器分成發射器與接收器相對安裝; 當「被檢測物」通過感測器時會遮斷光束即可檢測有無「被檢測物」。
A sensor is separated to an emitter and a receiver that are positioned opposite each other, It detects the object by the detected object interrupting the beam.
Notice of use 使用注意事項:
1 The size of the detected object/「被檢測物」的大小
2. The outline of the detected object/「被檢測物」的形狀
3. The transparency of the detected object /「被檢測物」的透明度
4. The passing speed of the detected object /「被檢測物」的通過速度
5. The space between the detected object and the detected object/「被檢測物」連續移動的間隔
其他相關資料

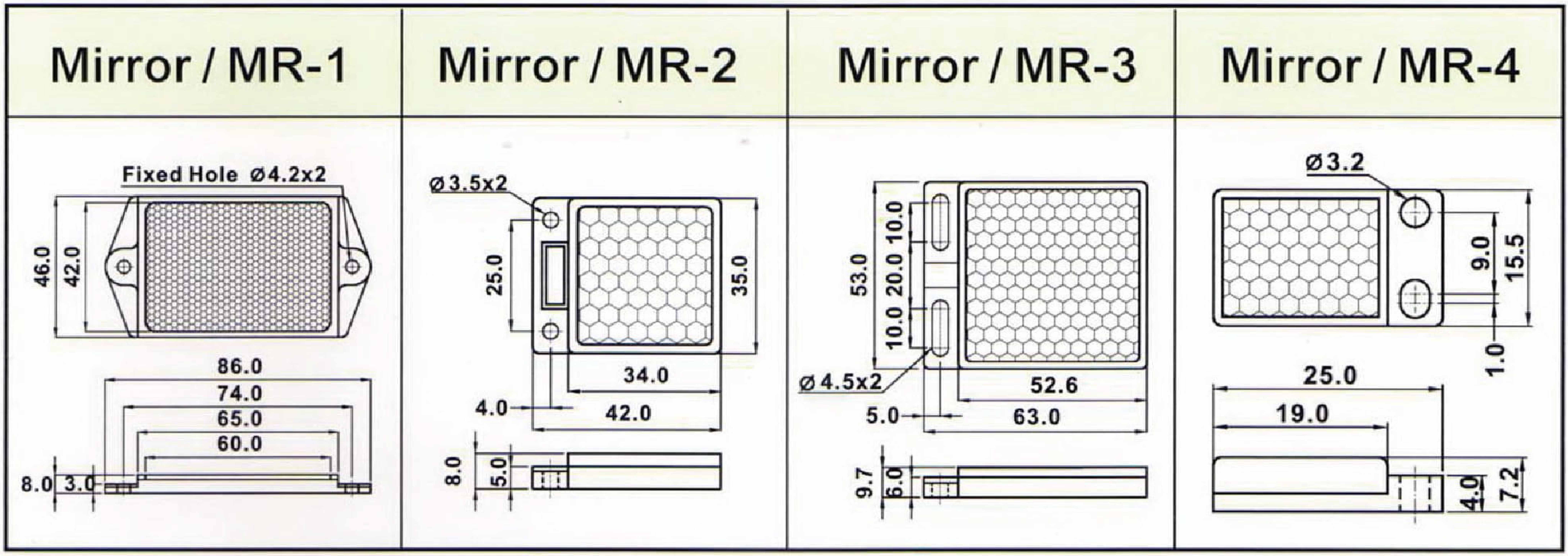

反射鏡片

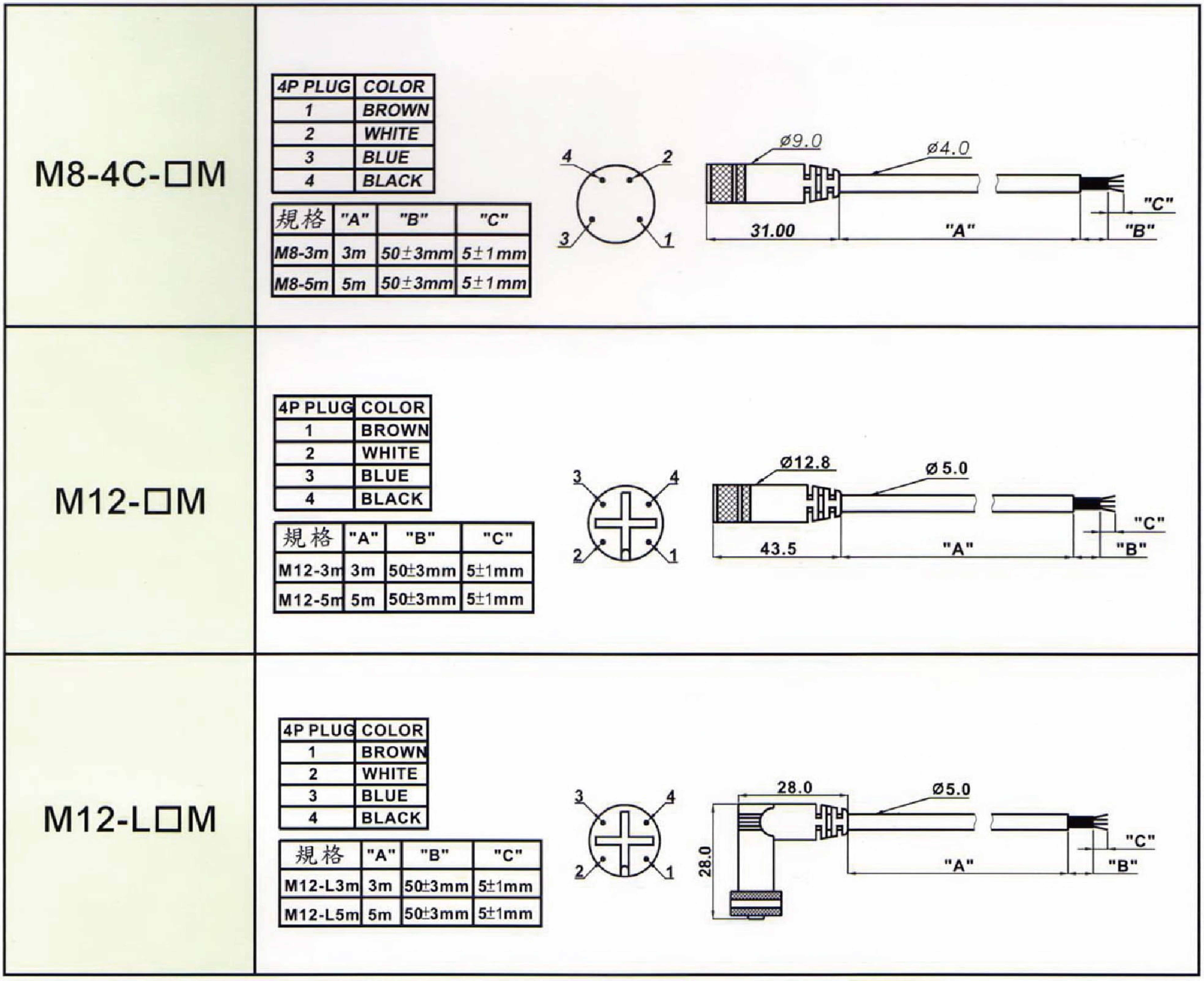

連接電纜
