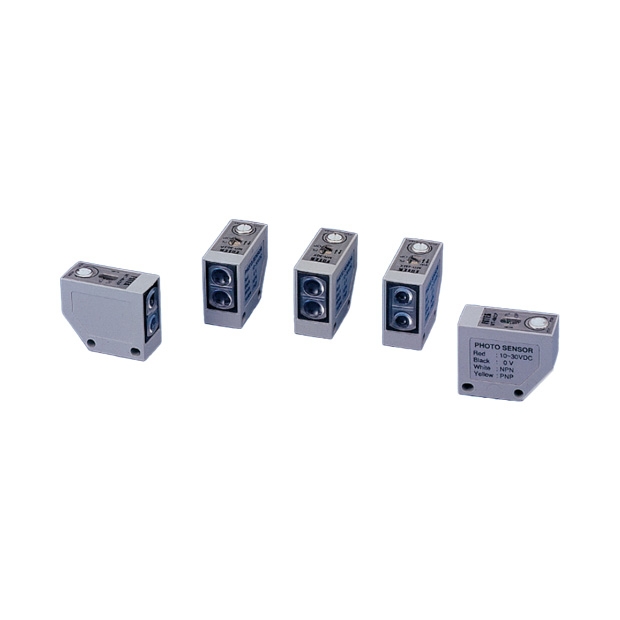

產品特點
小型&防水結構光電開關
- 高緊密的結構 (High Compact Structure) 感測器設計緊密，尺寸為13.5（寬）X 25.0（高）X 30.0（長），適合小型和空間有限的應用場景。
- 高防護等級 (High Protection Class) 符合IP-67標準，具有卓越的防塵與防水能力，適用於惡劣環境，確保穩定耐用的性能。
- 長感應距離 (Long Sensing Distance) 提供多種檢測距離選項：
- 反射型 (Reflective Type)：檢測距離分為30cm與60cm。
- 鏡面反射型 (Mirror Reflex Type)：檢測距離可達2m。
- 透過光束型 (Through Beam Type)：檢測距離最遠達6m。
產品規格
一般規格
| Specification 規格 | Data | |
|---|---|---|
| Operating Voltage 工作電壓 | 10~30 VDC; Ripple < 20% of Peak to Peak | |
| Output Method 輸出方式 | NPN & PNP Two Output | |
| Output Status 輸出狀態 | NO < Normal Open >, NC Type Available Also | |
| Output Current 輸出電流 | 150mA max. | |
| Leakage Current 漏電流 | 0.8mA max. | |
| Residual Voltage 剩餘電壓 | 0.6V max. | |
| Protection Circuit 保護電路 | Short Circuit & Polarity Reversed Protection | |
| Response Time 響應時間 | 2ms Max. | |
| Sensitivity Adjuster 靈敏度調節器 | 270° Trimmer | |
| Emitter 發射極 | Infrared LED | |
| Illumination 照明 | Sunlight < 10,000 Lux.; Lamplight < 5,000 Lux. | |
| Hysteresis 磁滯現象 | 10% of Sensing Distance Max. | |
| Housing Material 築屋材料 | Case: PBT; Lens: PC | |
| Operating Temp./Hum. 工作溫度 | -20°C~+60°C; 35%~85% RH | |
| Connection Method 連接方式 | Lead Wire Type: 4 Cores / 5.0Ψ X 2m Plug Type: 4 Pins |
|
| Model of NC Type NC型型號 | Reflex Type: MR-30XB, MR-30XPB, MR-60XB, MR-60XPB PR-30XB, PR-30XPB, PR-60XB, PR-MXPB Mirror Reflex Type: MG-2MXB, MG-2MXPB, PG-2MXB, PG-2MXPB Thru Beam Type: MT-6MXB, MT-6MXPB, PT-6MXB, PT-6MXPB |
|
| Remarks 備註 | Water Proof By Expose Filled for IP-67 | |
反射類型
| Type | Lead Wire Type | Plug Type | ||||||
|---|---|---|---|---|---|---|---|---|
| Model | MR-30X | MR-30XP | MR-60X | MR-60XP | PR-30X | PR-30XP | PR-60X | PR-60XP |
| Protection Class | IP-65 | IP-67 | IP-65 | IP-67 | IP-65 | IP-67 | IP-65 | IP-67 |
| Sensing Distance | 30cm | 60cm | 30cm | 60cm | ||||
| Operating Voltage | 10~30 VDC; Ripple < 20% Peak to Peak | |||||||
| Current Consumption | 30mA max. | |||||||
| Output Method | NPN & PNP Two Way Output | |||||||
| Output Status | NO < Normal Open > | |||||||
| Output Current | 150mA max. | |||||||
| Emitter | Infrared LED | |||||||
| Protection Circuit | Short Circuit & Polarity Reversed Protection | |||||||
| Weight < Appr. > | 78g | 84g | 78g | 84g | 12g | 18g | 12g | 18g |
反光鏡類型
| Type | Lead Wire Type | Plug Type | ||
|---|---|---|---|---|
| Model | MG-2MX | MG-2MXP | PG-2MX | PG-2MXP |
| Protection Class | IP-65 | IP-67 | IP-65 | IP-67 |
| Sensing Distance | 2m | |||
| Operating Voltage | 10~30 VDC; Ripple < 20% Peak to Peak | |||
| Current Consumption | 30mA max. | |||
| Output Method | NPN & PNP Two Way Output | |||
| Output Status | NO < Normal Open > | |||
| Output Current | 150mA max. | |||
| Emitter | Infrared LED | |||
| Protection Circuit | Short Circuit & Polarity Reversed Protection | |||
| Weight < Appr. > | 78g | 84g | 12g | 18g |
直通光束類型
| Type | Lead Wire Type | Plug Type | ||
|---|---|---|---|---|
| Model | MT-6MX | MT-6MXP | PT-6MX | PT-6MXP |
| Protection Class | IP-65 | IP-67 | IP-65 | IP-67 |
| Sensing Distance | 6m | 6m | ||
| Operating Voltage | 10~30 VDC; Ripple < 20% Peak to Peak | |||
| Current Consumption | Emitter < 20mA, Receiver < 25mA | |||
| Output Method | NPN & PNP Two Way Output | |||
| Output Status | NO < Normal Open > | |||
| Output Current | 150mA max. | |||
| Emitter | Infrared LED | |||
| Protection Circuit | Short Circuit & Polarity Reversed Protection | |||
| Weight < Appr. > | 180g | 162g | 20g | 32g |

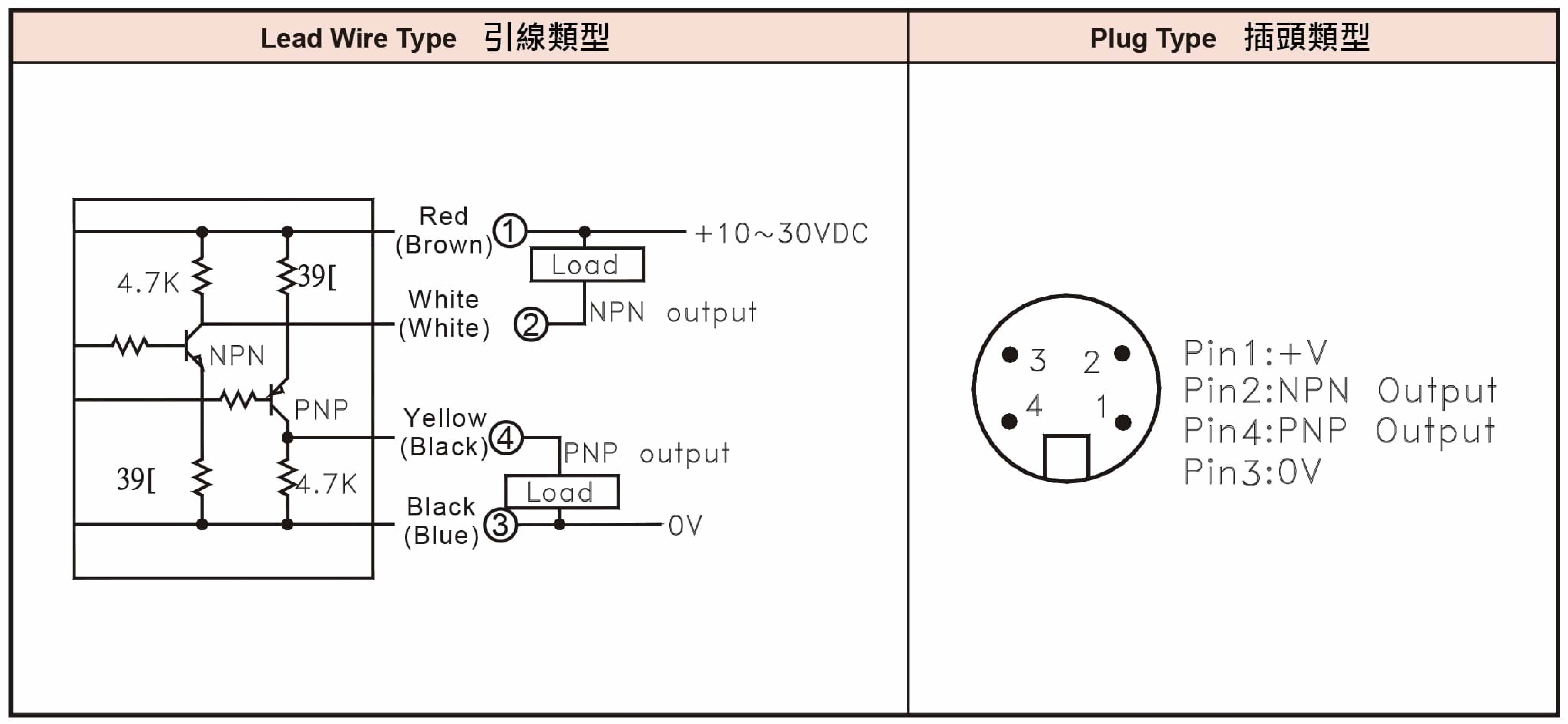

產品電路與接線圖

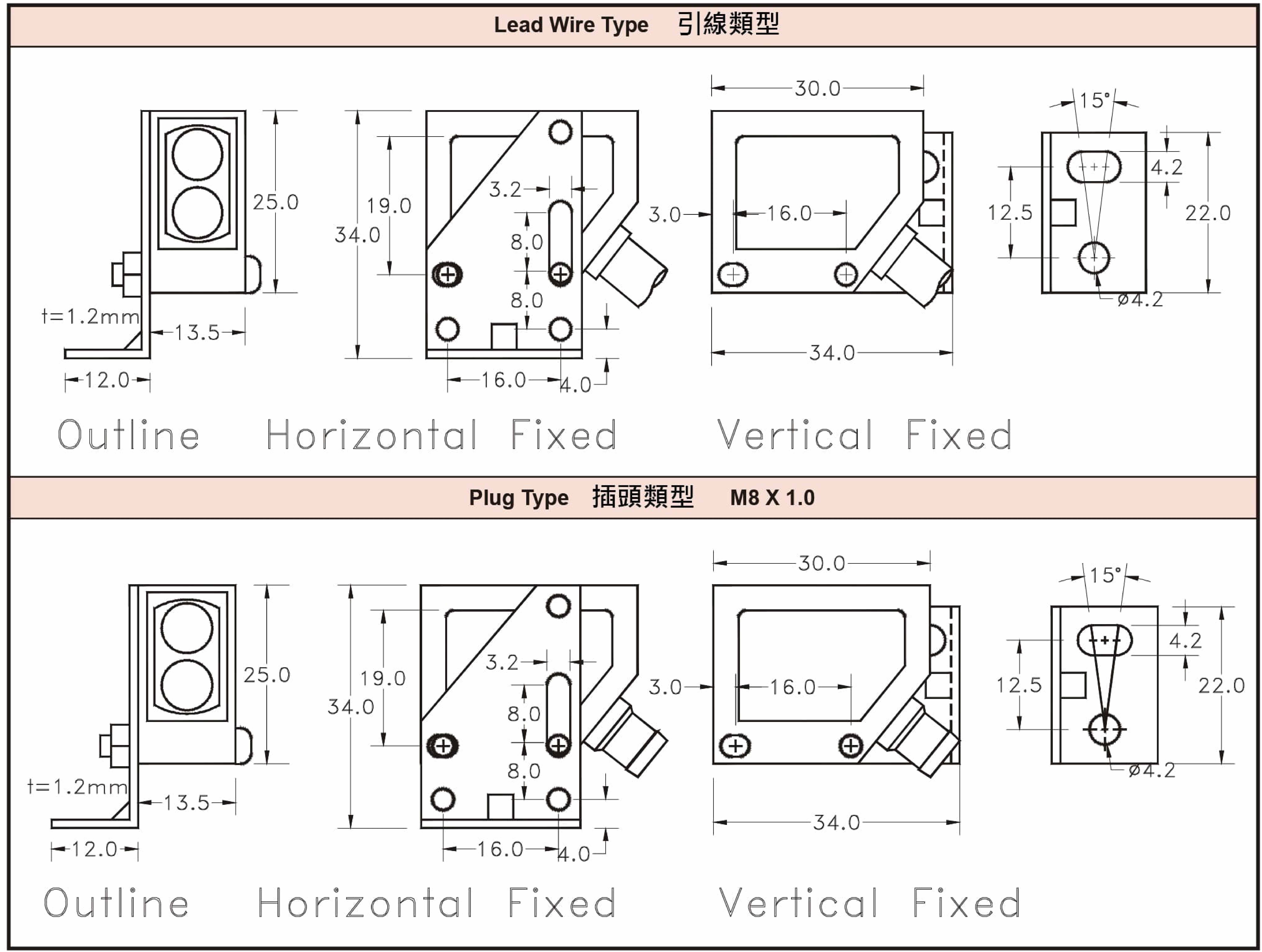

產品尺寸
