產品特點

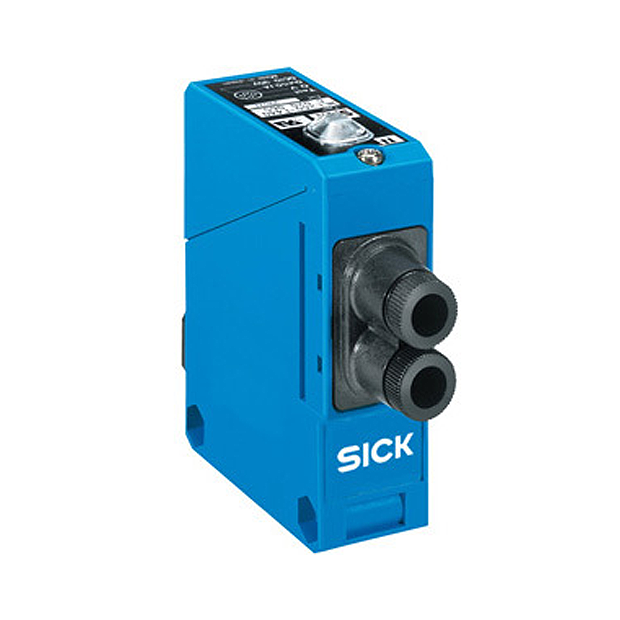

WLL260 光纖感測器
- 尺寸：12x38.5x59mm，設計精巧
- 外殼材質：塑膠，耐用可靠
- 電源電壓範圍：10...30VDC、10...240VDC、24...240VAC，適應性廣
- 感應輸出：PNP/NPN/Rel.SP，功能靈活
- 輸出頻率：700/s(DC)；25/s(UC)，表現穩定
- 輸出延遲：可備選
- 防護等級：IP66，抗環境影響能力強
- 工作溫度範圍：-25℃至+55℃，適用多種環境
產品規格
型號：WLL260-R240
 |
電源電壓 | 12...240 V DC,24...240 VAC |
| 工業防護等級 | IP 66 | |
| 光源 | LED紅光 | |
| 輸出 | Relay,SPDT,electrically isolated | |
| 感測距離 | 0 mm...50 mm,proximity system,LIS/LIB 0mm...90mm,proximity system, with special fibre-optic cable 0 mm...700 mm,through- beam system,LIS/LIB |
型號：WLL260-S240
| |
電源電壓 | 12...240 V DC,24...240 VAC |
| 工業防護等級 | IP 66 | |
| 光源 | LED紅光 | |
| 輸出 | Relay,SPDT,electrically isolated | |
| 感測距離 | 0 mm...50 mm,proximity system,LIS/LIB 0mm...90mm,proximity system, with special fibre-optic cable 0 mm...700 mm,through- beam system,LIS/LIB |
型號：WLL260-E240
| |
電源電壓 | 10...30 V DC |
| 工業防護等級 | IP 66 | |
| 光源 | LED紅光 | |
| 輸出 | NPN,open collector:Q | |
| 感測距離 | 0 mm...50 mm,proximity system,LIS/LIB 0mm...90mm,proximity system, with special fibre-optic cable 0 mm...700 mm,through- beam system,LIS/LIB |
型號：WLL260-F240
| |
電源電壓 | 10...30 V DC |
| 工業防護等級 | IP 66 | |
| 光源 | LED紅光 | |
| 輸出 | PNP,open collector:Q | |
| 感測距離 | 0 mm...50 mm,proximity system,LIS/LIB 0mm...90mm,proximity system, with special fibre-optic cable 0 mm...700 mm,through- beam system,LIS/LIB |
型號：WLL260-F440
| |
電源電壓 | 10...30 V DC |
| 工業防護等級 | IP 66 | |
| 光源 | LED紅光 | |
| 輸出 | PNP,open collector:Q | |
| 感測距離 | 0 mm...50 mm,proximity system,LIS/LIB 0mm...90mm,proximity system, with special fibre-optic cable 0 mm...700 mm,through- beam system,LIS/LIB |
