產品特點

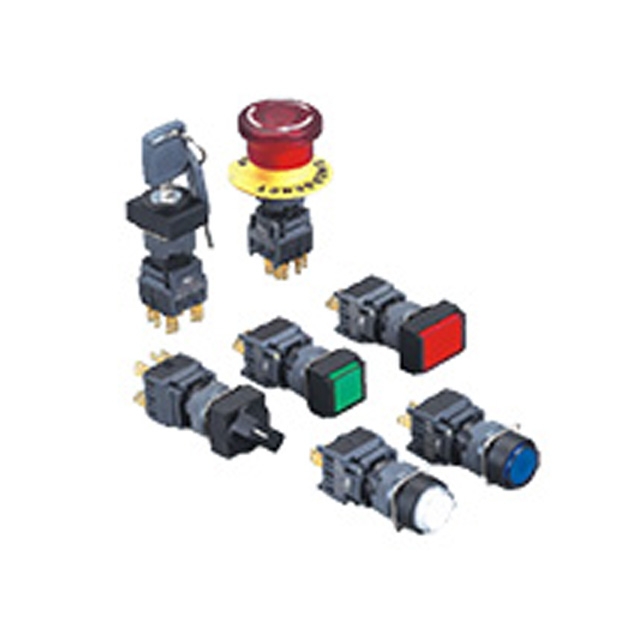

分離式按鈕(急停按鈕) - F16系列
- 安裝直徑：16mm，適合各種設備安裝要求。
- 防護等級：IP65，確保產品具有出色的防水防塵性能。
- 觸點：銀鍍金厚度為3μ，保證高耐久性和可靠的觸點功能。
- 設計：可拆分設計，使安裝和維護更加方便。
- 型號選擇：提供帶鎖、不帶鎖和急停三種型號，滿足不同應用需求。
- 顯示：LED超高亮冷光源燈顯示，確保在各種工作環境下的清晰可見。
產品規格
| 保護等級 Degree of Protection | IP 65 Watertight/Olitight |
| 觸點類型 Contact Configuration | Single Pole,Double Pole |
| 最大電壓 Maximum Voltage | 250V AC/DC |
| 熱電流 Thermal Current | 5A |
| 最小負載 Minimum Applicable Load | 5V AC/DC,1mA |
| 觸點材料 Comtact Material | Gold-plated silver |
| 端子接式 Terminal Style | .110"Solder/Quick Connect |
| 工作溫度 Operating Temperature | -25°C to +55°C |
| 工作濕度 Operating Humidity | 45 to 85% RH |
| 接觸電阻 Contact Resistance | 50M Ω maximum |
| 絕緣電阻 Insulation Resistance | 100M Ω minimum(500V DC megger) |
| 抗振性 Vibration Resistance | 10 to 55Hz,amplitude 1.2mm p-p |
| 保護等級 Degree of Protection | >10g |
| 電氣壽命 Electrical Life | 100,000 operations minimum (at full rated load) |
| 機械壽命 Mechanical Life | Maintained:1,000,000 operations minimum Momentary:1,000,000 operations minimum Selectr/Keylock:250,000 operations minimum |
| 耐壓 Dieletric Strength | Switch Unit:2,000V AC,1min.between live/dead part and terminals of different poles; 1,000V AC,1 minute between termials of the same pole; 1,500V AC,1 minute between contact and lamp terminals. illumination Unit:2,000V AC,1min.between live Part/ground |
| 錫焊溫度 Soldering Temperature | 20W/5 Seconds or 260C/3 seconds |
| 觸點參數 / Contact Ratings | ||||
|---|---|---|---|---|
| 工作電壓 Working voltage | 24V | 110V | 220V | |
| AC(50/60Hz) | 阻性 Resistive | – | 1.0A | 0.5A |
| 感性 Inductive | – | 0.7A | 0.5A | |
| DC | 阻性 Resistive | 1.0A | 0.2A | – |
| 感性 Inductive | 0.7A | 0.1A | – | |
| LED 燈珠參數 / LED Ratings | |
|---|---|
| 額定電壓/Rated voltage | 電流/Current |
| 5V DC ± 5% | 8mA |
| 6V AC/DC(±10%) | AC:A,R,W,Y:8mA G,S:7mA DC:A,R,W,Y:6mA G,S:5mA |
| 12V AC/DC(±10%) | AC:9mA DC:8mA |
| 24V AC/DC(±10%) | AC:9mA DC:8mA |
產品訂購編號
按鈕開關
選擇和鑰匙開關
其他相關資料
F16系列急停按鈕/F16 E-stop button series
| 名稱/外觀 Product appearance |
操作類別 Operation |
帶燈形式 Illuminated Type |
觸點 Contact |
產品型號 Model |
燈罩顏色 Top Color |
額定電壓 Rated Voltage |
|---|---|---|---|---|---|---|
| 急停鈕/ E-stop button     |
自鎖 Maintained |
不帶燈 Without LED |
單刀 /SPDT |
F16-811☐● | 請用下列 顏色編碼替換 型號中的"☐"  |
請用下列 顏色編碼替換 型號中的"●" D:24VDC E:12VDC F:6.3VDC A1:110VAC A2:220VAC |
| 雙刀 /DPDT |
F16-812☐● | |||||
| 三刀 /TPDT |
F16-813☐● | |||||
| 帶燈 With LED |
單刀 /SPDT |
F16-871☐ | ||||
| 雙刀 /DPDT |
F16-872☐ | |||||
| 三刀 /TPDT |
F16-873☐ | |||||
| 帶警示燈急停鈕/ With warning LED E-stop  |
自鎖 Maintained |
不帶燈 Without LED |
單刀 /SPDT |
F16-A11☐● | 請用下列 顏色編碼替換 型號中的"☐" |
請用下列 顏色編碼替換 型號中的"●" D:24VDC E:12VDC F:6.3VDC A1:110VAC A2:220VAC |
| 雙刀 /DPDT |
F16-A12☐● | |||||
| 三刀 /TPDT |
F16-A13☐● | |||||
| 帶燈 With LED |
單刀 /SPDT |
F16-A71☐ | ||||
| 雙刀 /DPDT |
F16-A72☐ | |||||
| 三刀 /TPDT |
F16-A73☐ | |||||
| B型急停鈕/ Byte E-stop  |
自鎖 Maintained |
不帶燈 Without LED |
單刀 /SPDT |
F16-B11☐● | 請用下列 顏色編碼替換 型號中的"☐" |
請用下列 顏色編碼替換 型號中的"●" D:24VDC E:12VDC F:6.3VDC A1:110VAC A2:220VAC |
| 雙刀 /DPDT |
F16-B12☐● | |||||
| 三刀 /TPDT |
F16-B13☐● | |||||
| 帶燈 With LED |
單刀 /SPDT |
F16-B71☐ | ||||
| 雙刀 /DPDT |
F16-B72☐ | |||||
| 三刀 /TPDT |
F16-B73☐ | |||||

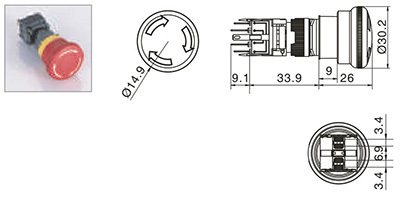

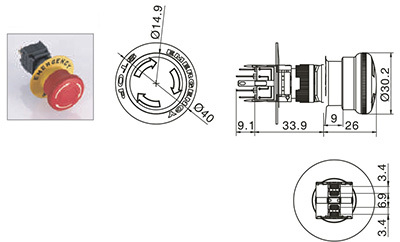

| 急停鈕 | 帶警示燈急停鈕 | |||||
 |
 |
|||||

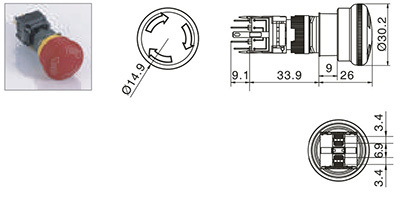

| B型急停鈕 | ||||||
 |
||||||

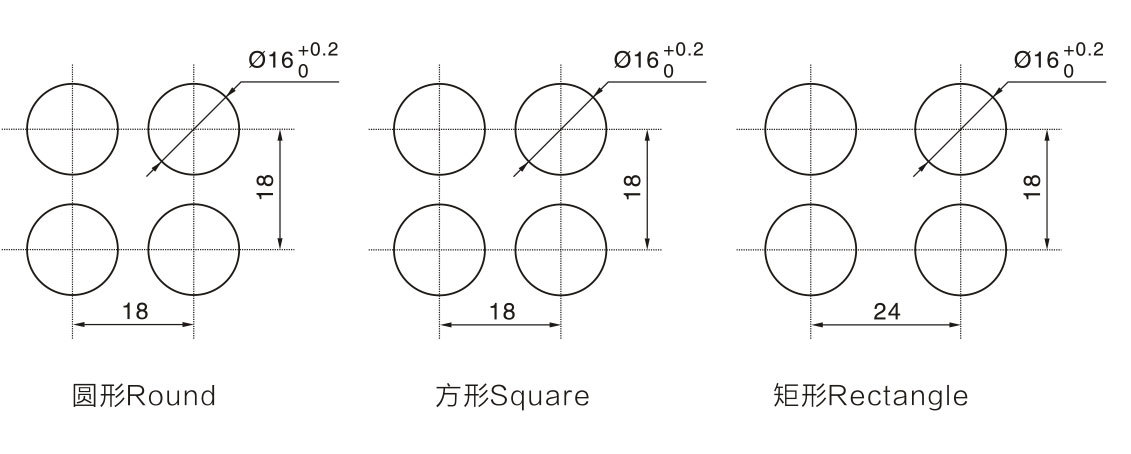

| 安裝尺寸圖/Installation size | ||||||
 |
||||||
| 端子排列圖/Terminal style | ||||||
☐右側產品的底座看成正面時,端子排列順序及內部電路圖。
As shown at right, the base of product to be seen as tront side, which show terminal disposition and inside coil drawing. ☐產品出產時基本安裝觸點座1C(1a+1b),在需要時請指定增加最多3C (1a+1b)。 Product assemble contact 1C(1a+1b),if needed, Please appoint to add at least 3C(1a+1b) |
||||||

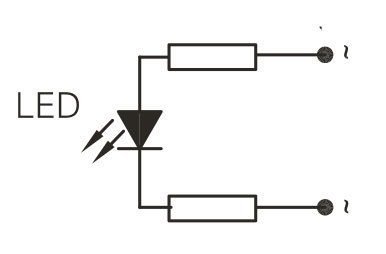

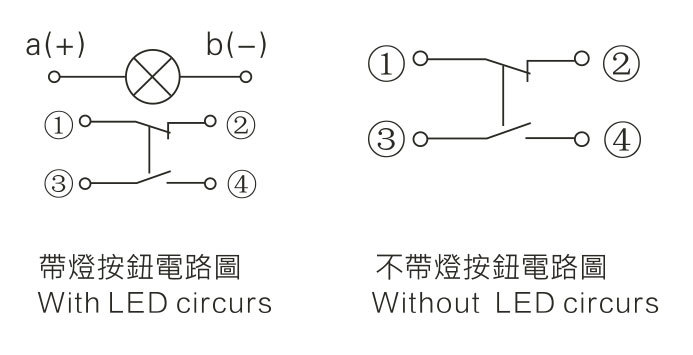

| 接線圖/Contacts Circult | 燈珠電路圖/Contacts Circuit | |||||
 |
適用於交直流12VDC, 24VDC, 110VAC, 220VAC系列
for 12VDC, 24VDC, 110VAC, 220VAC |
|||||
