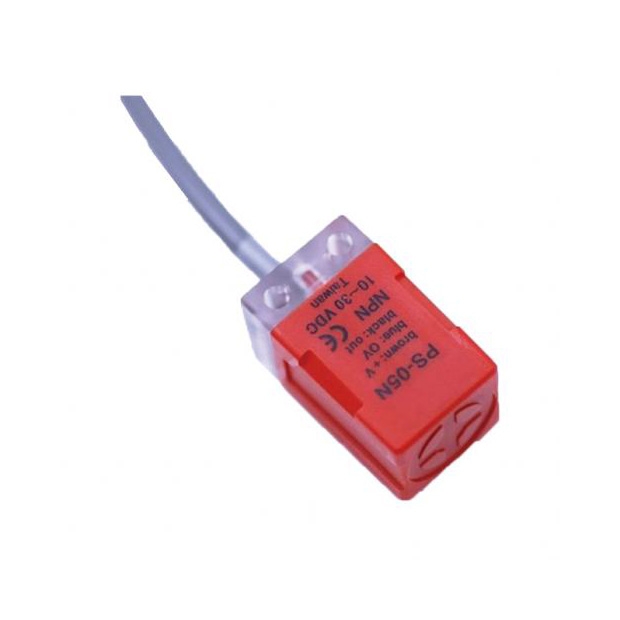

產品特點
- 堅固 IP-67 結構： 高固體密結構設計，適合在任何惡劣環境下使用，可有效抵禦灰塵與水分侵害，確保長期穩定運作。
- 直流型保護回路： 配備短路保護及極性保護回路，在電路發生異常時提供雙重防護，延長設備使用壽命。
- 交流型突波防護： 附有突波吸收回路，有效防止因突波電壓引起的設備損壞，提升在工業環境中的可靠性。
- 操作指示便利： 全系列產品均配備動作指示燈，用戶能輕鬆監控設備狀態，提高操作效率與安全性。
產品共同規格
| Specification | DC type | AC type |
|---|---|---|
| Operation voltage 工作電壓 | 10~30VDC | 90~250 VAC |
| Power ripple 電源漣波 | <20% of Vp-p | 50/60Hz |
| Output current 輸出電流 | 150 mA max. | 100 mA max. |
| Current consumption 消耗電流 | 10 mA max. | 2.0 mA max. |
| Residual voltage 殘餘電壓 | <0.1V | <15V |
| Leakage current 殘留電壓 | <0.8 mA | <4.0 mA |
| Hysteresis 應差 | <10% of sensing distance | |
| Thermal drift 溫度漂移 | <10µm/°C | |
| Voltage drift 電壓漂移 | <1μm/V | |
| Protection circuit 保護回路 | Short-circuit & Polarity reversed | surge absorbing circuit |
| Operating Temperature 工作溫度 | -25°C~+80°C | |
| Operating humidity 工作濕度 | 35%~95% RH | |
| Protection class 保護等級 | IP-67 | |
| Color of sensing face 感應面顏色 | NPN=Red; PNP=Green | Blue |

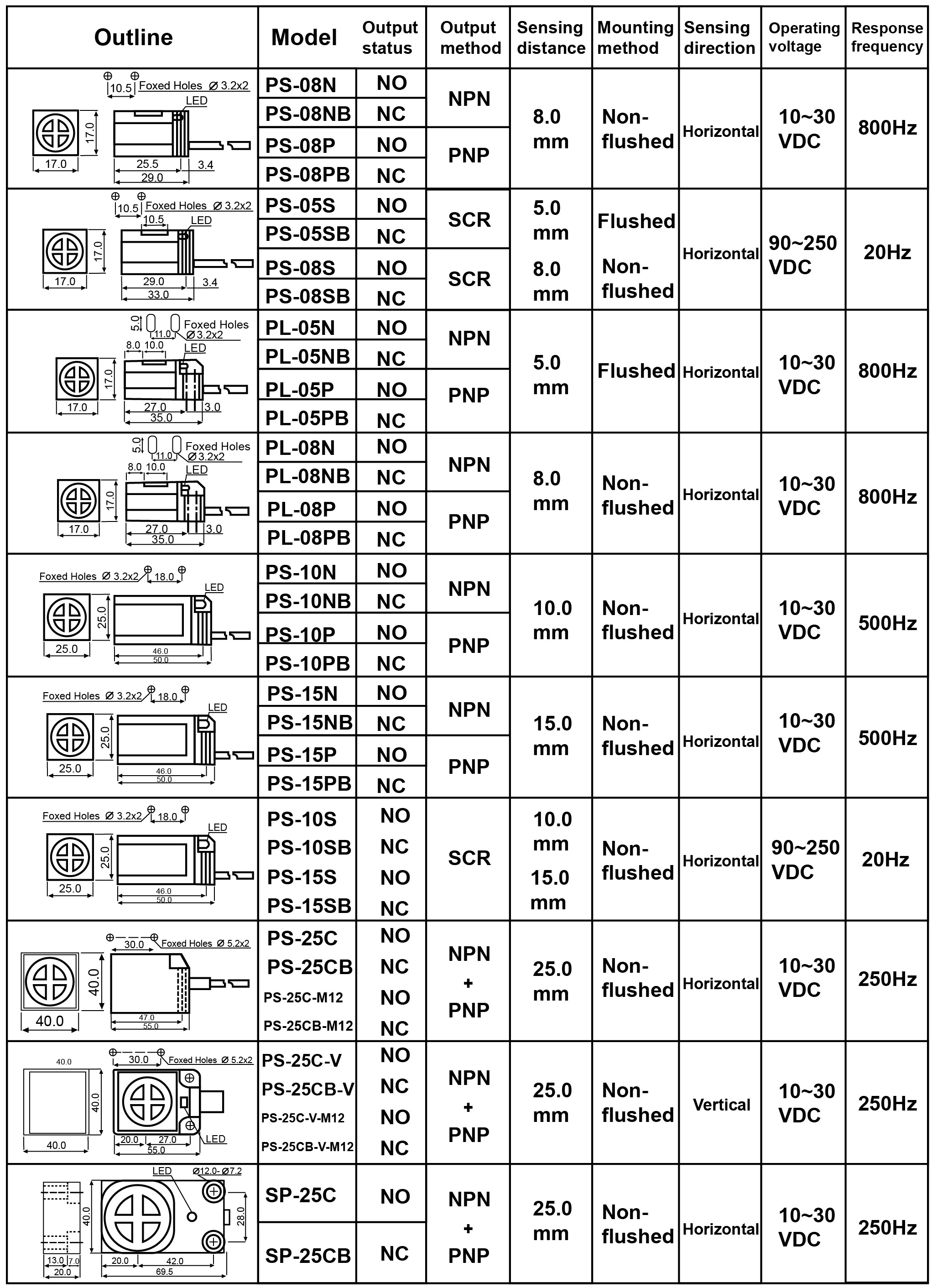

型號索引
應用程式提示
While a switching power supply is used, please be sure to ground the FG (Frame ground) and the G (Ground) terminal, if failure to do so, it may resulting malfunction of the sensor for the noise of the switching power supply. Meanwhile, the ripple of the DC power supply is required less than 20% to avoid resulting malfunction of the sensor.
產品尺寸

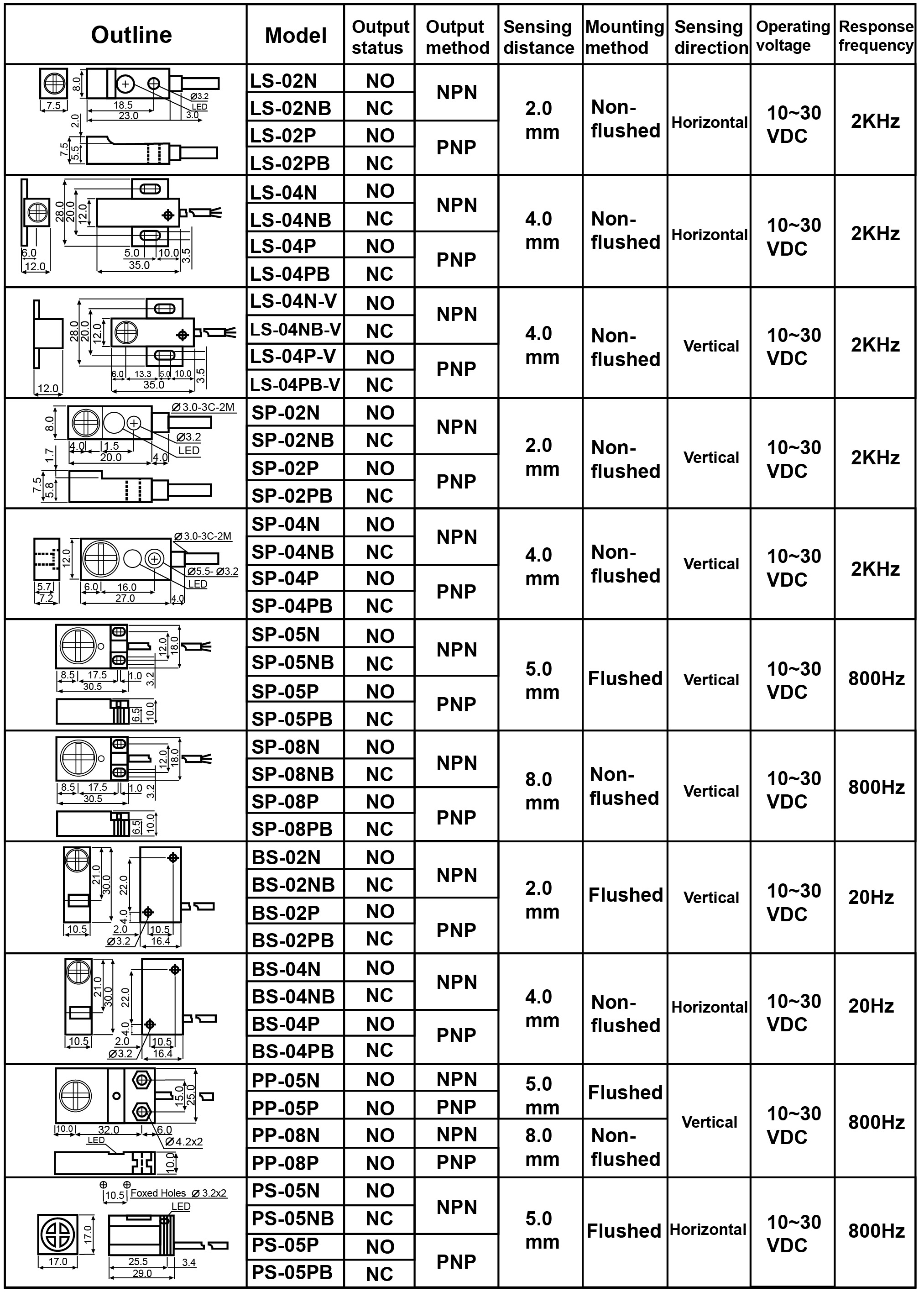

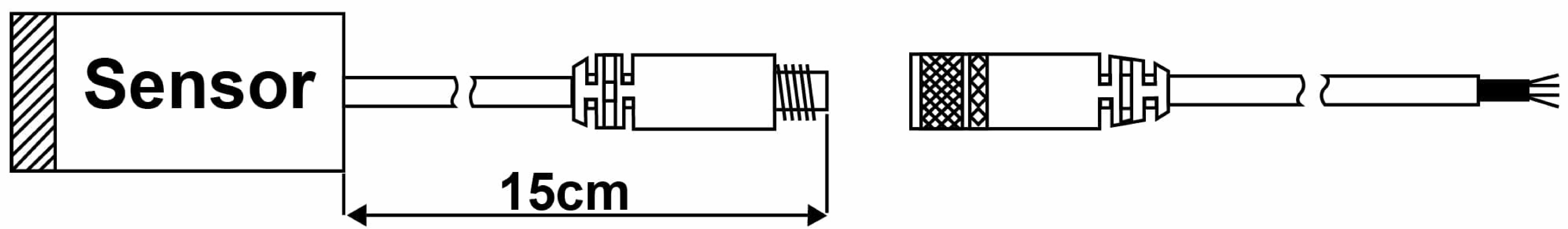

M8引線連接【適用於所有感測器】
![M8引線連接[適用於所有感測器]](/upload/images/174323357-02.jpg)
方形【塑膠外殼】
方形【塑膠外殼】
其他相關資料

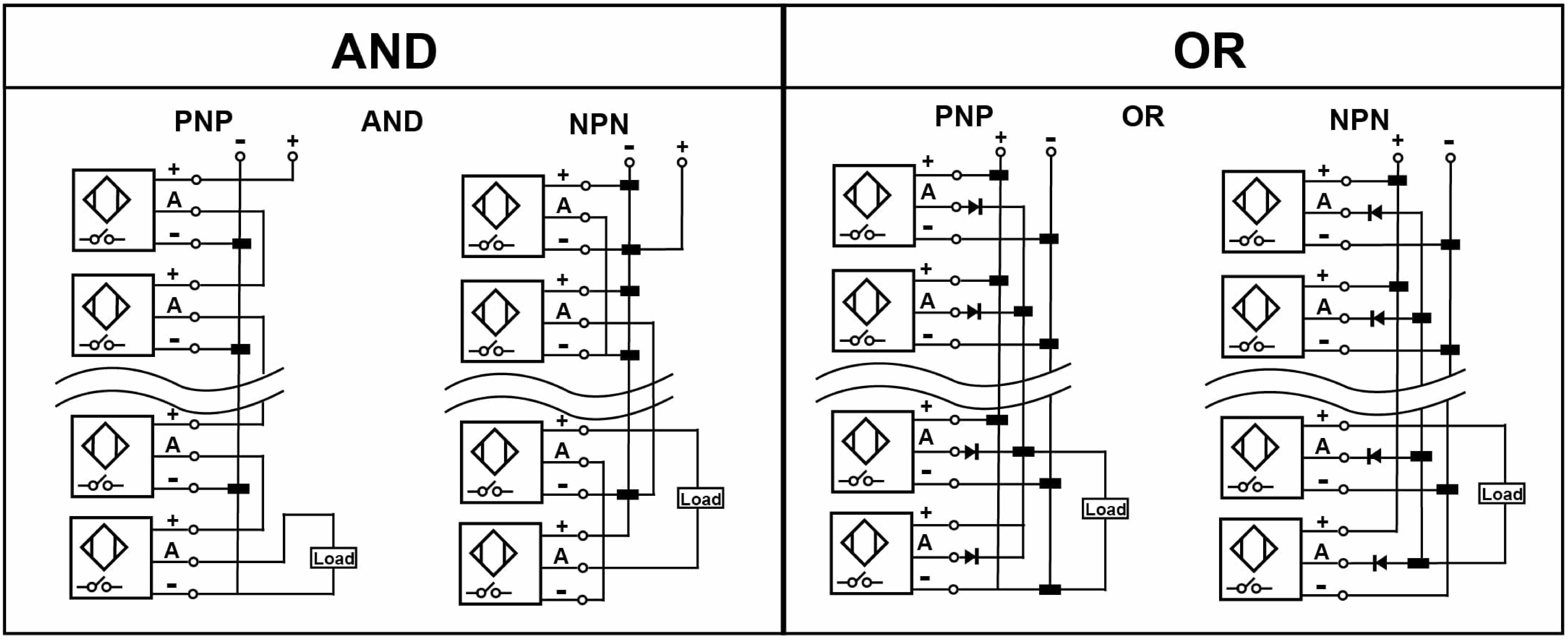

AND & OR 連線方法
基本定義
Target/標準檢測物

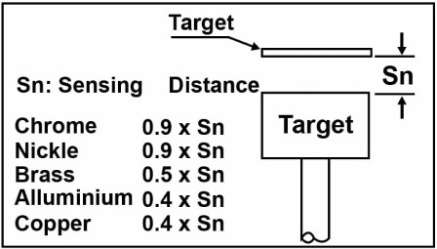

Whick is teel, 1mm thickness, square form with width equal to the diameter of the sensing surface, if the target is made of a different material, the sensing distance must be multiplied by the Correction factor.
標準檢測物是方型鐵片，厚度1mm，長寬等於感測器的感應面直徑。如果標準檢測物的材質不是鐵則感測距離須依右圖的修正係數修正。

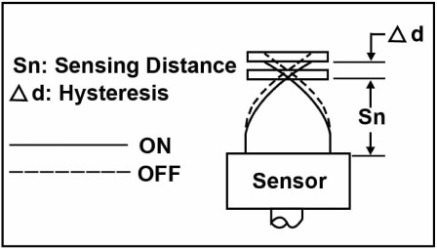

Hysteresis /應差
Hysteresis is the different distance between the operating points that the target is approaching and leaving the sensing area of the sensor, the value is expressed as a percentage of the sensing distance (Ad/Sn%)
應差是感測器的動作點與復歸點的距離，一般是以動作點與復歸點的距離除以感應距離後以百分比表示。

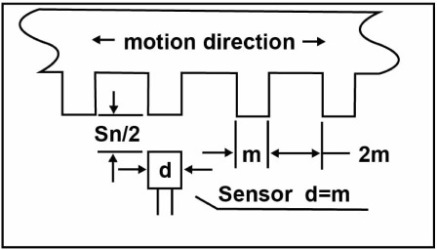

Switch frequency/響應頻率
It is the maximum response frequency per second, based on a pulse ratio 1:2, the sketch shows the condition of test.
響應頻率是以ON/OFF比=1:2的條件所測得每秒最高響應頻率。測試條件如右圖所示。
Accuracy (Repetition) / 重複精度
Tolerance of operating position that sensor is certainly operated under the same condition.
在相同的條件下所測得的最大動作點與最小動作點的差值。
安裝注意事項
Flushed type / 埋入式
A proximity sensor can be flushed mounted in metal and surrounded by metal up to the level of the sensing face.
近接感測器可完全埋入金屬物即感應面四周可受金屬物包圍。

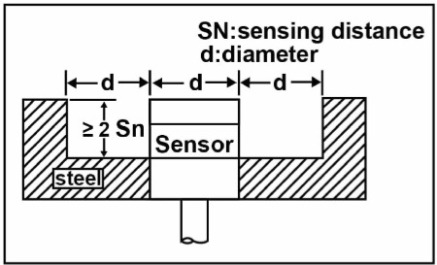

Non-flushed / 非埋入式
A proximity sensor cannot be mounted in metal, clear zone of 3 times of the diameter of the sensing surface must be keep.
近接感測器感應面四周不可受金屬物包圍，淨空範圍必須是近接感測器感應面直徑的三倍距離以上。

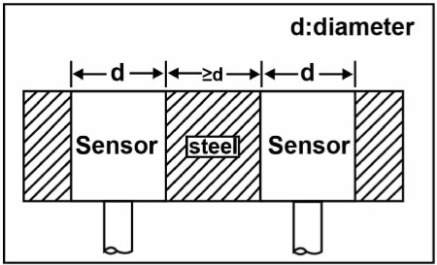

Mutual interference / 互相干擾

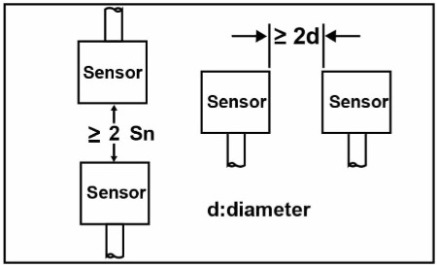

To install the inductive proximity sensors of the same model by face to face or side by side, please set the minimnm distance between the sensors larger than the diameter of sensor, to avoid the malfunction.
近接感測器不可以面對面或並排方式安裝，如果要以上數方式安裝務必保持近接感測器感應面直徑的一倍距離以上。

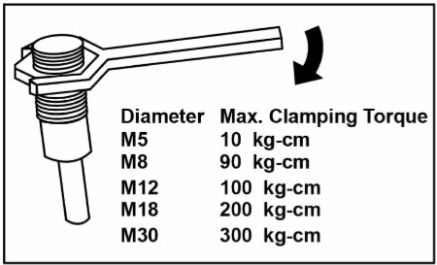

Clamping torque / 鎖緊扭力
Be sure to set a spring washer when fixing the sensor, Don't tighten the mounting screw of PM series with a clamping torque higher than the right value.
安裝近接感測器時務必使用止滑墊圈以防止鬆脫。安裝 Pm系列近接感測器時鎖緊扭力請勿超出最大扭力值以免損壞近接感測器。
Notice of Wiring / 配線注意事項
To avoid being influenced by noise, try best to separate the cable of the sensor from the power lines and high tension lines. if extend the sensor cable, please use a cable which diameter as same as that.
避免雜訊干擾，請盡量將感測器的電線與動力線或高壓線分離，不要綁在一起。 如果要延長感測器的電線請盡量使用和感測器的電線相同規格的電線。
